Tunnel Kiln Ceramic Fiber Blanket High Temperature Fireproof Insulation Materials

Category： Kilns' Refractory Materials
Classification temperature: 1260℃
Heat Linear Shrinkage:1000℃*24h≤4
Shot Content（φ≥0.212mm) ≤20%
Tensile Strength: ≥0.04 MPa
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

Tunnel Kiln Ceramic Fiber Blanket High Temperature Fireproof Insulation Materials

1. Brief introduction

Ceramic Fiber Blanket is made of special aluminum silicate ceramic fiber filament through double-sided needling process. The fiber’s interweaving degree, delamination resistance, tensile strength and surface flatness are greatly improved after double-sided needing process. Besides, the fiber blanket does not contain any organic binder to ensure the ceramic fiber blanket has good manufacturability and stability under high temperature and low temperature.

2. Main technical parameters

Product Category	Normal Ceramic Fiber Blanket	Standard Ceramic Fiber Blanket	High Purity Ceramic Fiber Blanket	High Alumina Ceramic Fiber Blanket	Low Zirconium Ceramic Fiber Blanket	Zirconium Ceramic Fiber Blanket
Classification Temperature	1050	1260	1260	1350	1350	1430
Heat Linear Shrinkage	950℃*24h≤4	1000℃*24h≤4	1100℃*24h≤4	1200℃*24h≤4	1250℃*24h≤4	1350℃*24h≤4
Shot Content（φ≥0.212mm）%	≤20	≤20	≤15	≤15	≤15	≤15
Tensile Strength（mpa）(Thickness 25mm)	≥0.04	≥0.04	≥0.04	≥0.04	≥0.04	≥0.04
Thermal Conductivity（average 500℃）w/(m*K)	≤0.153	≤0.153	≤0.153	≤0.153	≤0.153	≤0.153
Density （kg/m3）	96/128(Others customized)
Size	Length（3600/4500/5000/7200）* Width（610/1200）* Thickness（6-60）

3. Typical application

Industrial kiln , heating device wall lining and back lining thermal insulation
High temperature kiln, heating device, wall lining and gap filler
Raw materials for high temperature gasket, module, folding block
High temperature equipment’s thermal insulation
High temperature pipeline’s thermal insulation
Electric component’s thermal insulation and fire prevention.

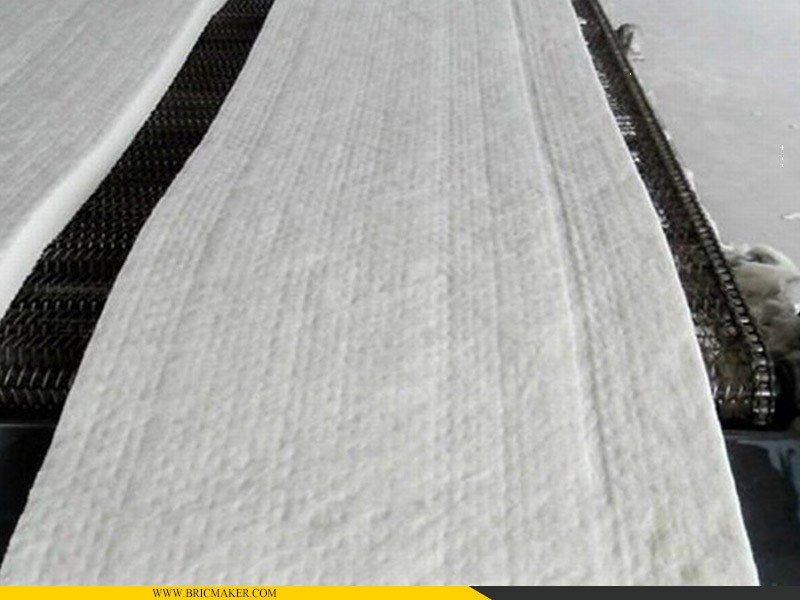

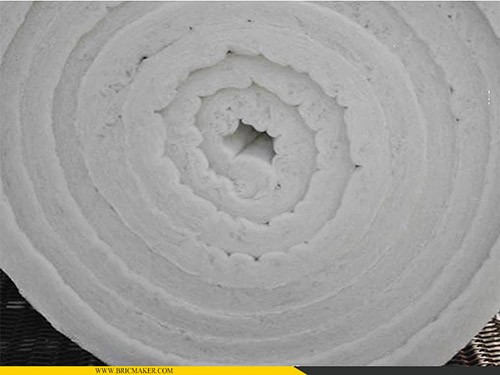

4. Detail images:
