Brief introduction:

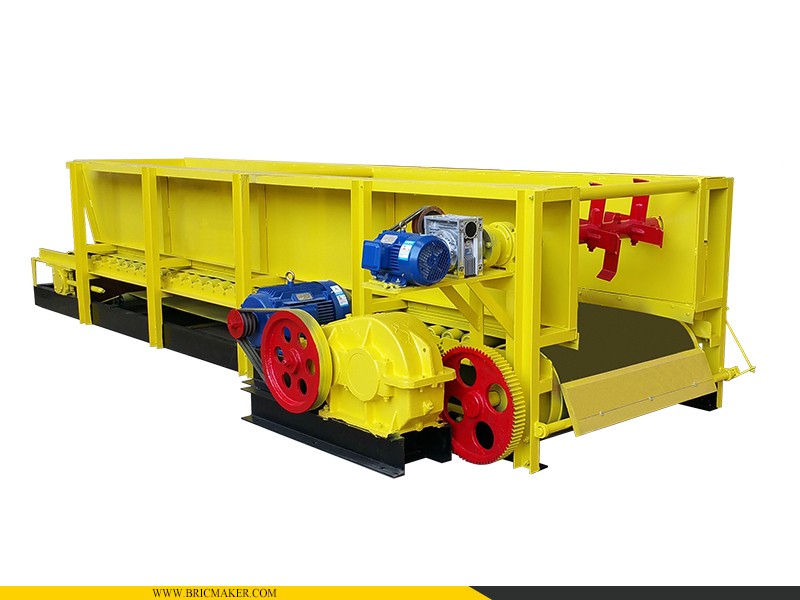

Box feeder is suitable for loose raw materials conveying from material storage warehouse to downstream equipment. It is most applied in miners, chemistry, brick and tiles or building materials enterprises.
Box type feeding machine is driven by electric motor. Bricmaker offer 4 models box feeders to meet different conveying capacity requirement. The gearbox drives the driving rotor and the trailer rotor, which is moderately tensioned, and then drives the 1000mm width belt moves at continuously and uniformly low speed, realizing the purpose of conveying loose materials.
This machine has the features of smooth running, reliable performance, easy operation and maintenance.
Main technical parameters:
Model |
XGD80 |
XGD100 |
XGD120 |
Capacity: m³/h |
25-35 |
35-50 |
40-80 |
Feeding size: mm |
≤ 200 |
≤ 200 |
≤ 200 |
Belt width: mm |
800 |
1000 |
1200 |
Belt speed: m/min |
10 |
10 |
10 |
Volume: m³ |
2.8 |
3.5 |
4.2 |
Total power: kw |
5.5+3 |
7.5+3 |
11+3 |
Overall dimensions: mm |
5500×1700×1200 |
5600×1990×1200 |
5600×2200×1200 |
Total weight: kg |
2,700 |
3,300 |
3,500 |
