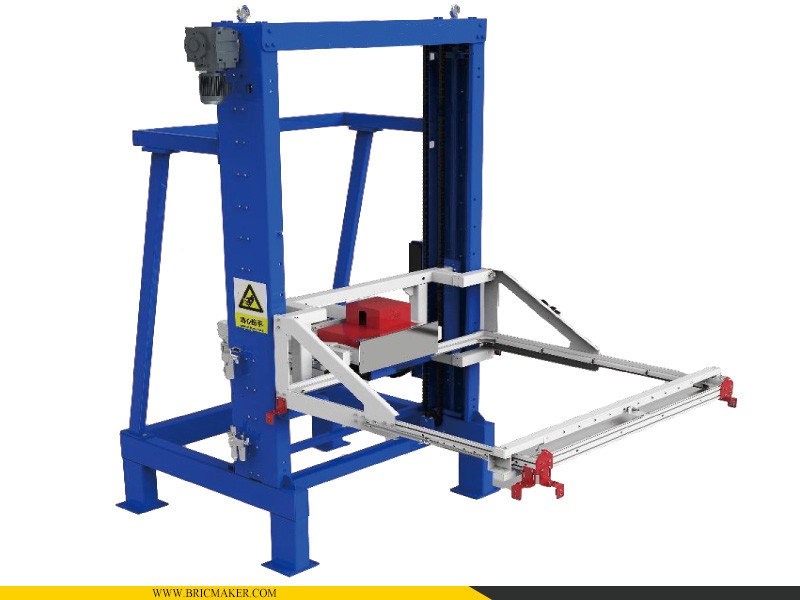

Horizontal Fully Automatic Packaging Machine Pallet Strapping Machine

Brief introduction:

The fully automatic horizontal strapping machine is used to threading horizontal straps around the package, ensure the goods no loose straps nor scatter during transportation.  It is widely applied in logistics, building materials, brick and tile industries, metallurgy, sheet metal and other industries for bidirectional bundling and packaging.


Main advantages:

a. Wearing groove anti-collision safety device.
b. The strap machine head can approach the goods automatically, with a maximum travel of 350mm. The bundling belt tension balancing device ensures that the bundling belt is tightened and balanced around the goods.
c. Separate mechanical belt reel, suitable for 20-75kg PET strapping

d. With human-machine interface and integrated control box

e. Adopting digital intelligent packaging machine head: simple structure, easy maintenance, few vulnerable parts, and high tensioning force

f. Freely adjustable tension force


Main technical parameters:

Tension force 350/500kg(adjustable)
Packing speed 16S/Belt
Belt piercing speed 4.2m/s (adjustable)
Pallet sizes 1200*1200*1600mm (or customized)
Belt material PET
Belt sizes Width:12-16mm, thickness:0.5-0.8mm, or customized
Belt welding method High frequency friction (Pneumatic/electric)
Belt welding speed 0.3~1.5m/s (adjustable)
Belt welding strength 96% of master belt (national standard: 80%)
Power 3.5KW
Air pressure 0.7MPa
Equipment dimension 4700*2800*3750mm

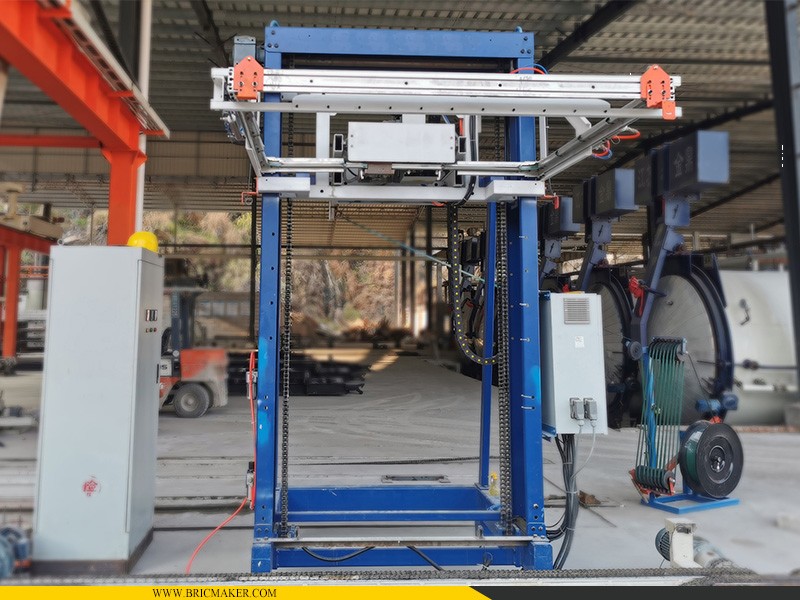

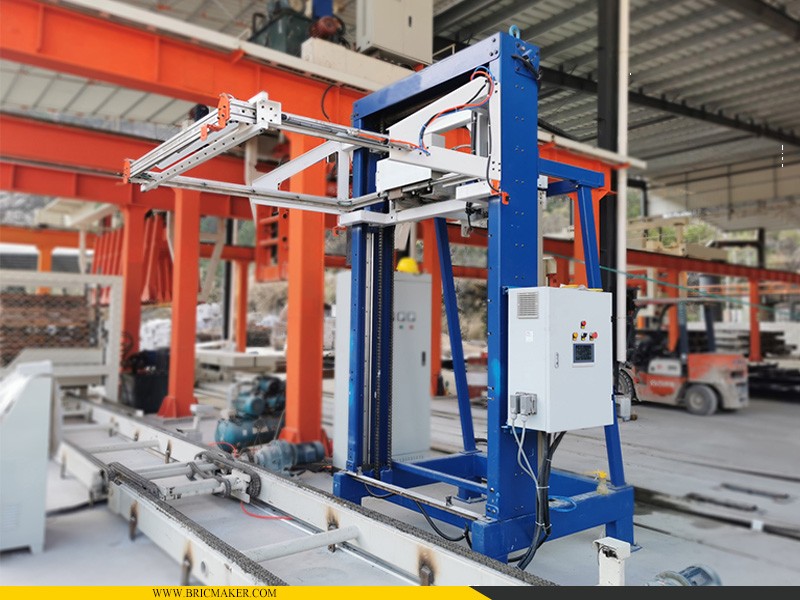

Detail photos:





Our core Advantages of Packing Machine Head:

1)Pneumatic friction is good for strap joint and doesn’t require high environmental temperature; While if hot melt connection, it has requirement about the environment temperature.
2)Servo drive technology, tightening the packaging belt by 2-3 times, unlike the previous tightening once; the servo precision control, repeatedly tightening to ensure the tightness of the packaging belt, and no strict requirement about the packaging belt.
3)Easy maintenance, modular design, and complete component replacement within 10 minutes
4)Our own CNC machine processes the machine head with very high accuracy; Control the accuracy by ourselves and continuously improve it; There is no other packaging machine suppliers in China processes this core components by themselves.
5)Our market share in packaging machine heads is very large, with thousands of units per year, which provides us more experience and opportunities for continuous improving our machines compared to other companies; to ensure more stable and lower failure rate equipment to our customer
6)Motors for the brick stacking chain plate conveyor, brick stacking roller table, and brick stacking chain plate machine are all variable frequency and adjustable speed motors; The packaging machine head is equipped with walking motor and packaging motor, both of which are servo motors
