Servo Belt Single Robot Stacking System Brick Transport Stack Line


1. Brief introduction
Servo Belt Single Robot Stacking System is applied for automatic single bar or twin bar extrusion production line, whose green bricks no need to be turnover 90 degree before stacking onto kiln cars. It is composed of one robot, servo conveyor belt and PLC control system.
The main components are adopt name brand products, for example Sychronous belt-Shanghai Yongli, servo motor-Japanese Huichuan, passenger pneumatic components (cylinder, solenoid valve)-Taiwan Yade, Japan Omron PLC, Japan Hequan relay, etc.

By changing the stack type and stack sizes flexibly, the stack line could meet the requirements of both internal and external combustion in the kiln, by changing the stacking method. When applied to internal combustion kiln, it will stack small brick pallet, which will increase the quality, output and save more energy. When applied to external combustion kiln, it will stack big pallet, which is easy for drying and baking.

2. Main features:
  • Reasonable stack type, uniform gaps in every direction.
  • Wide application to various brick sizes.
  • Accessible to remote monitor.
  • Easy, safe, reliable.


3. Main parameters:

Robot model

Qty(Set)

Work frequency(times/h)

Stack ability(Pcs/time)

Output(pcs/hour)

Power(kw)

500kg

1

240-360

32-48

14400-24400

5.5+22

700kg

1

200-300

72-108

14400-24400

5.5+22

800kg

1

200-300

72-108

20700-34200

5.5+20.7

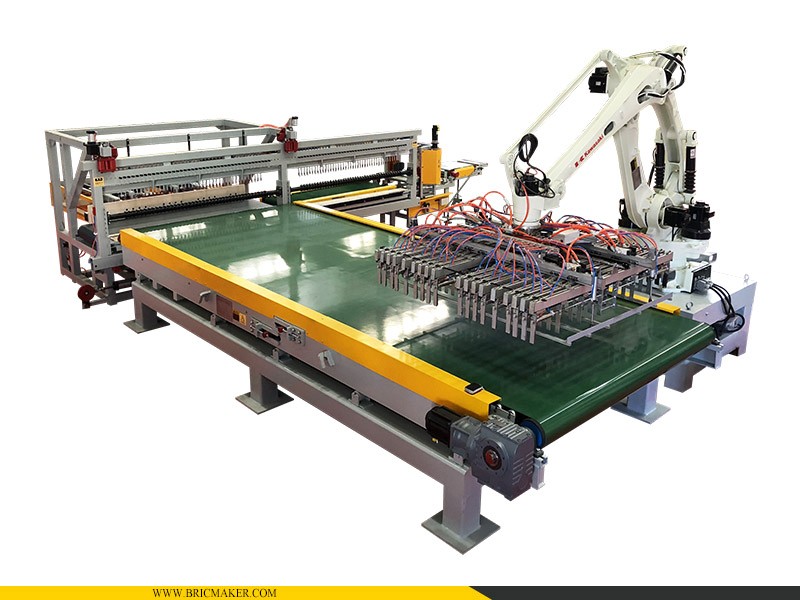

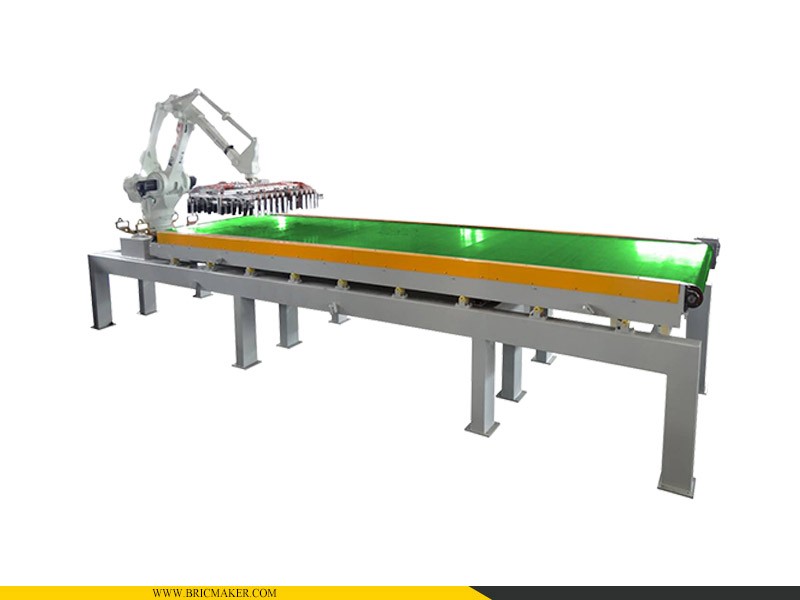

4. Detail image:
