Tunnel Kiln High Temperature Insulation Refractory Ceramic Fiber Module

Tunnel Kiln High Temperature Insulation Refractory Ceramic Fiber Module

1. Product description

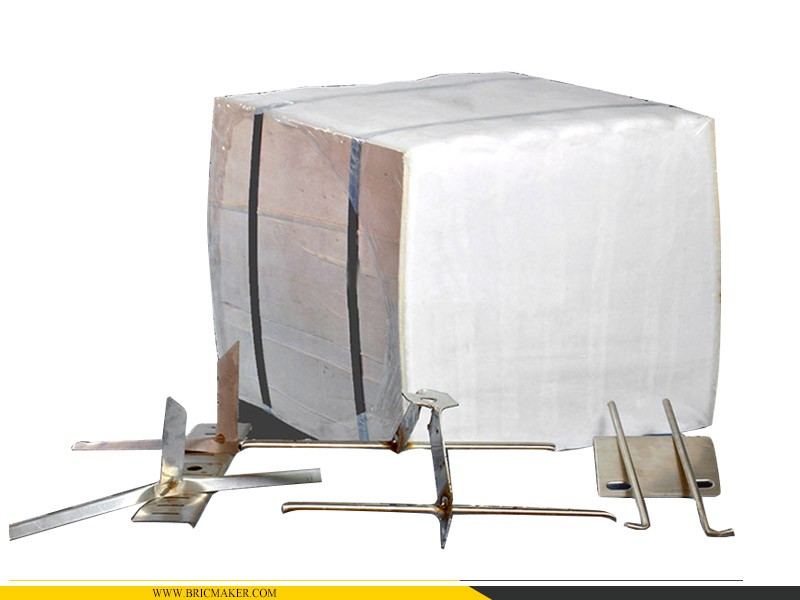

Ceramic fiber folding modules are made of ceramic fiber needled blankets and processed on special machinery according to the module’s structure and size. During the processing, a certain proportion of compression is maintained to ensure that the ceramic fiber folding module expands in different directions after installed in the wall lining, so that the ceramic fiber modules are extruded into a seamless whole. The ceramic fiber folding module can be directly fixed on the steel plate anchor nail of the industrial kiln shell through various forms of anchors.

2. Product features

1） Various forms of anchors on the back of the folding module enable the installation of the folding module to adopt either parallel arrangement or patchwork construction and installation.
2） The ceramic fiber modules will squeeze each other in different directions without gaps after being unbound
3)  Elastic fiber blanket can resist external mechanical forces
4)  The elasticity of fiber blanket can make up for the deformation of furnace shell, so that there is no gap between components
5)  Due to its light weight, it has little heat absorption when used as thermal insulation material
6)  Low thermal conductivity brings high energy-saving effect
7)  The lining body does not need drying or curing, so it can be put into use immediately after installation
8) The anchor system is away from the hot surface of the component, so that the metal anchor is at a relatively low temperature

3. Typical application

Metallurgy, petrochemical industry, brick kilns

Machinery, building materials

Nonferrous metals and other industries

Industrial furnace, heating device and furnace lining

4. Main technical parameters

Product Category	Normal Ceramic Fiber Module	Standard Ceramic Fiber Module	High Purity Ceramic Fiber Module	High Alumina Ceramic Fiber Module	Low Zirconium Ceramic Fiber Module	Zirconium Ceramic Fiber Module
Classification Temperature ℃	1050	1260	1260	1350	1350	1430
Density kg/m3	180-240
Heating Linear Shrinkage %	950℃*24h≤3	1000℃*24h≤3	1100℃*24h≤3	1200℃*24h≤3	1250℃*24h≤3	1350℃*24h≤3
Size	300*300* Insulation thickness Customized requirements acceptable

5. Application

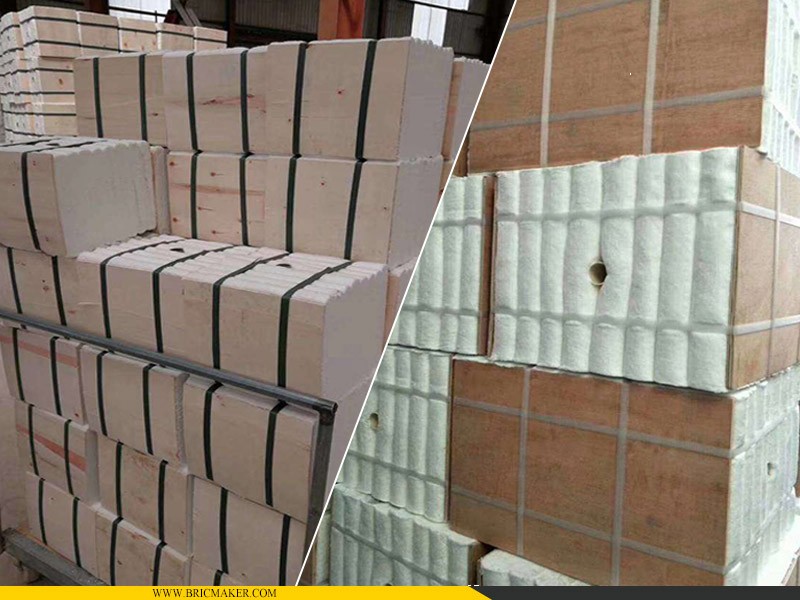

6. Ceramic fiber module assembly in workshop:
