Double Shaft Mixer Two Axles Mixing Machine

Double Shaft Mixer Two Axles Mixing Machine

Category： Brick's Raw Material Process Machines
Mixing capacity: 28-150 m3/h
Bin length: 3000mm/4000mm
Mixing rotation:37/30 RPM
Mixing diameter: 540mm
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

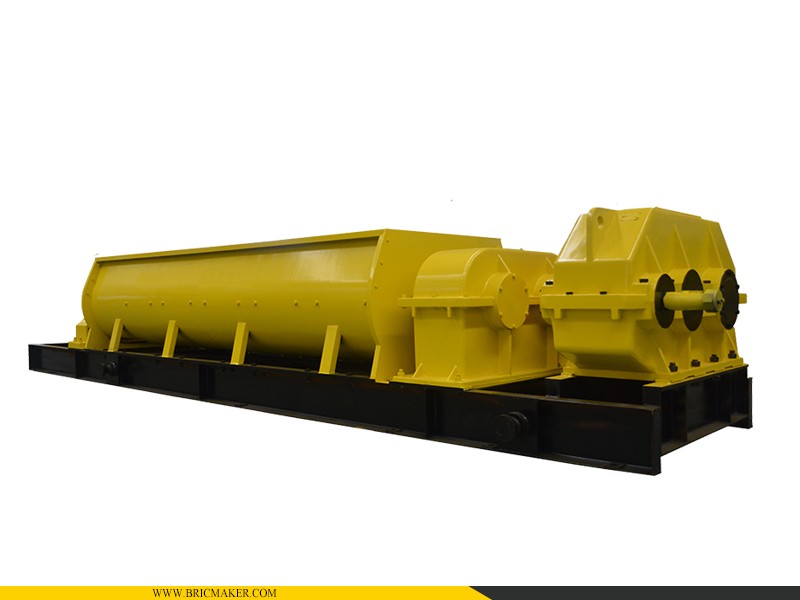

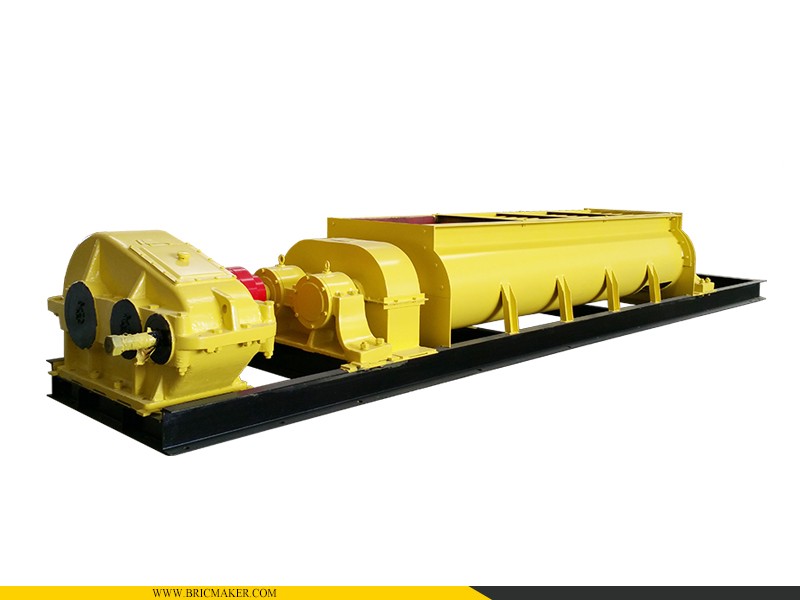

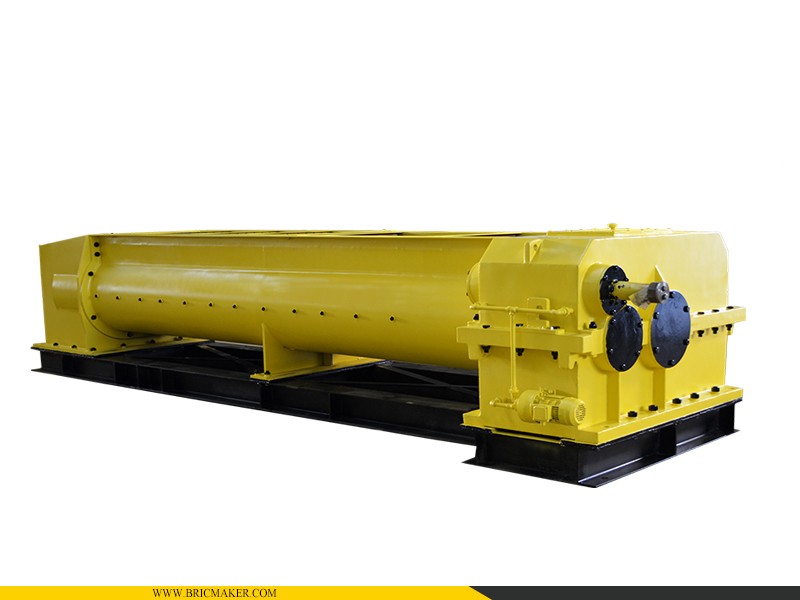

Double Shaft Mixer Two Axles Mixing Machine

Brief introduction:

This mixer is suitable for mixing and coarse crushing of various solid raw materials. It is especially suitable for mixing and stirring raw materials such as clay, shale and fly ash in brick and tile manufacturing enterprises.

The machine has good rigidity, higher capacity, and good mixing effect. It is an ideal equipment for the processing of raw materials for brick production and the mixing of raw materials for other industrial production.

Main technical parameters:

Models	SJ300X37	SJ400X37	SJ400X46	SJ400X55
Production capacity: m3/h	28-35	28-35	50-75	75-150
Bin length: mm	3000	4000	4000	4000
Shafts distance: mm	370	370	460	550
Mixing rotation: RPM	37	37	30	30
Mixing diameter: mm	540	540	604	800
Total power: kw	45	55	75/90	110
Overall dimensions: mm	6450×1350×860	7450×1350×860	6250×1570×1230	7620×1800×1340
Total weight: kg	4,700	5,300	12,000	16,000
