500KG/700KG Kawasaki Controller Stack Robot Green Brick Auto Stack

Category： Brick's Robot Auto Stacking System
Loading capacity: 500kg, 700kg
Stacking capacity: 32-84 pcs/time
Production capacity: 9600-25200 pcs/h
Power: 22KW
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

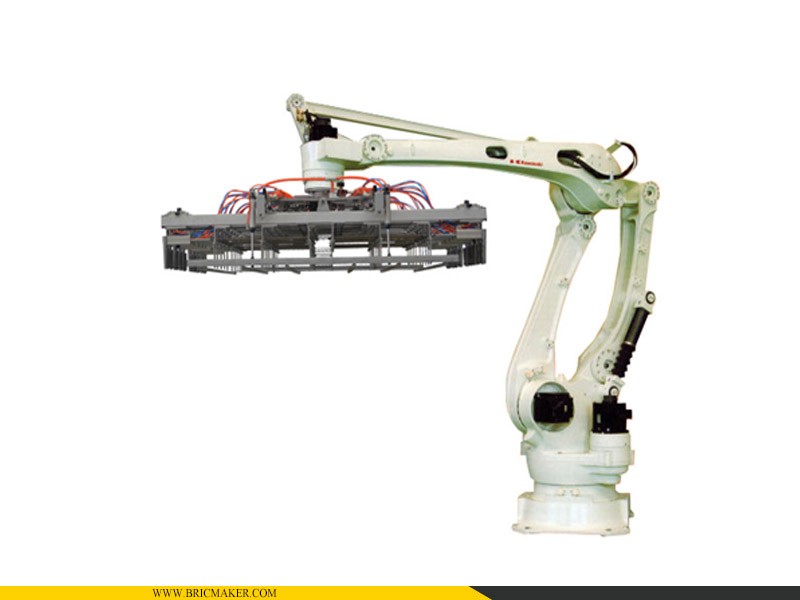

500KG/700KG Kawasaki Controller Stack Robot Green Brick Auto Stack

Brief introduction:

Kawasaki Controller Robot is the most advanced intelligent green brick stacking robot. It is flexible, efficient, stable and with high capacity. By integrating high quality components and reasonable design, Bricmaker stack robot is stable, safety and low failure rate.
Bricmaker have two models Kawasaki robots with two loading capacity for option: 5000KG and 700KG. The controller is integrated and mounted onto the base of the robot, no need connection cables and is easy to set. The robot’s mechanical wrist is designed in hollow, avoiding mechanical effect by robot cables. Bricmaker robot is equipped with the most advanced intelligence and the one of the best performance controller R-J3IC control.
To keep up with the most advance technology in the world, Bricmaker integrated Germany SEW gear motors, servo motors, Japan SMC pneumatic components, Italy Magodi synchronous belt with Kawasaki Robot. Help our brick making customers build reliable, efficient, fully automatic brick factories.

Main parameters:

Models	CP500L	CP700L
Loading capacity	500kg	800kg
Stacking capacity	32-84 pcs/time	72-144 pcs/time
Motion frequency	240-360 times/h	200-300 times/h
Production capacity	9600-25200 pcs/h	20700-34560 pcs/h
Control axis numbers	4	4
Power	22 kw	22 kw
Weight	1650kg	2100 kg
