Green Brick Robot with Japanese Fanuc Controller Automatic Brick Stack

Category： Brick's Robot Auto Stacking System
Loading capacity: 450kg, 700kg
Stacking capacity: 32-84 pcs/time
Production capacity: 9600-25200 pcs/h
Power: 19KW
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

Green Brick Robot with Japanese Fanuc Controller Automatic Brick Stack

Brief introduction:

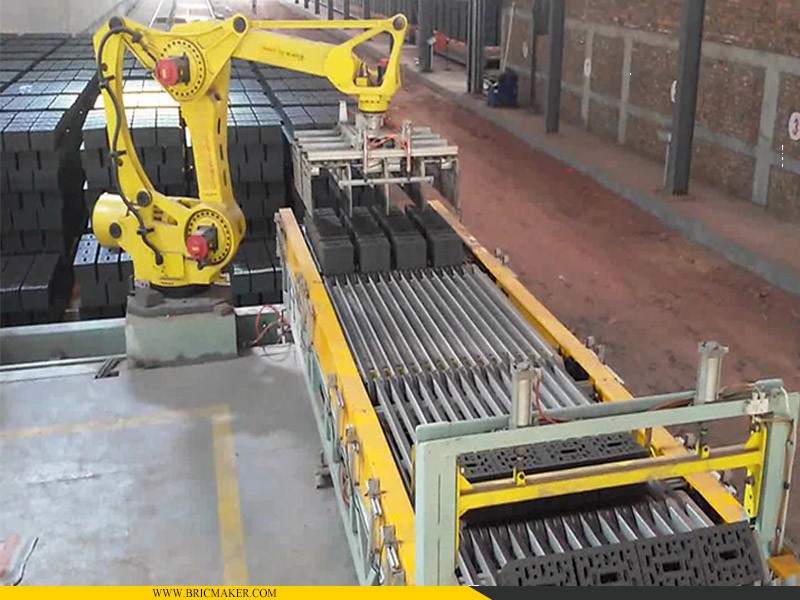

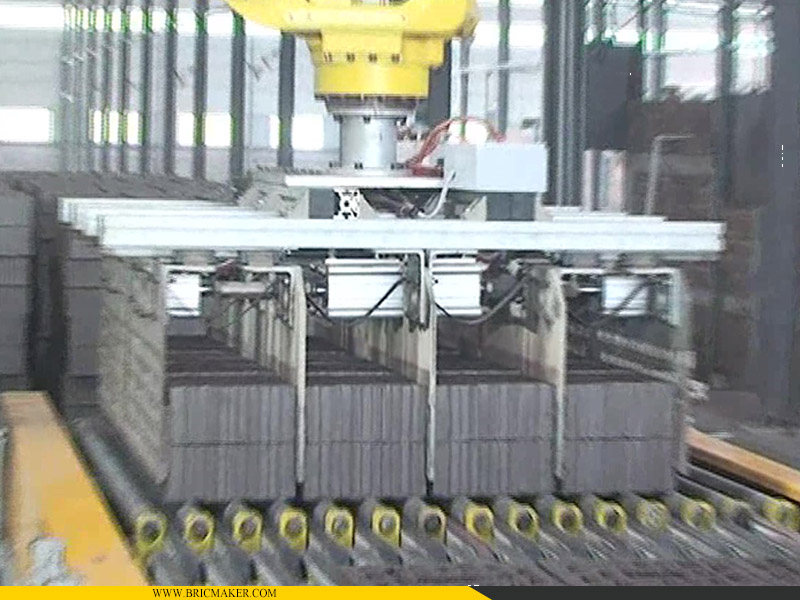

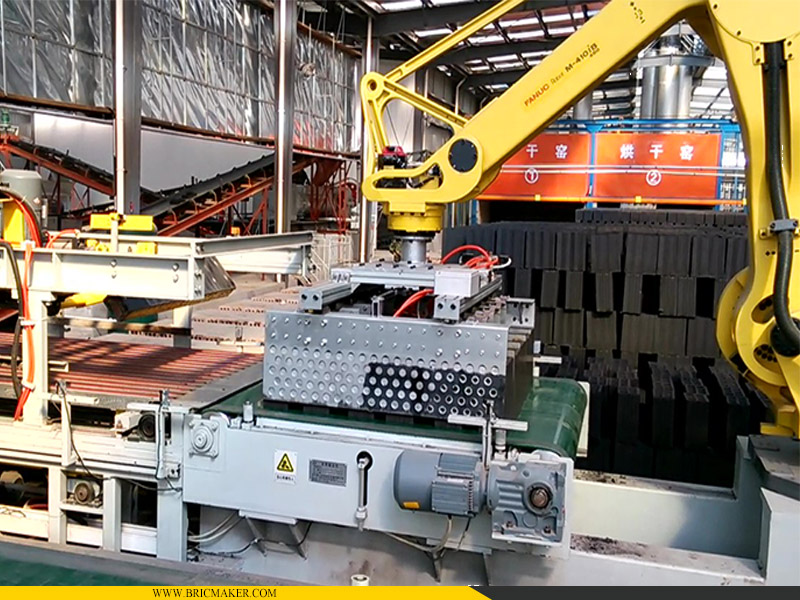

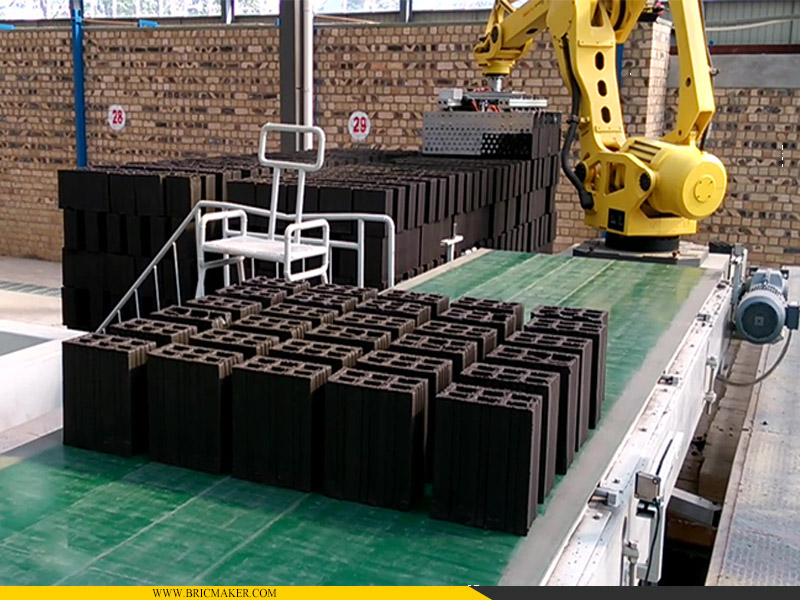

The application of robot for the green brick automatic stacking is the most advanced equipment for brick automatic plant. It has the features of quick motion, stable running, safety, low failure rate, etc.

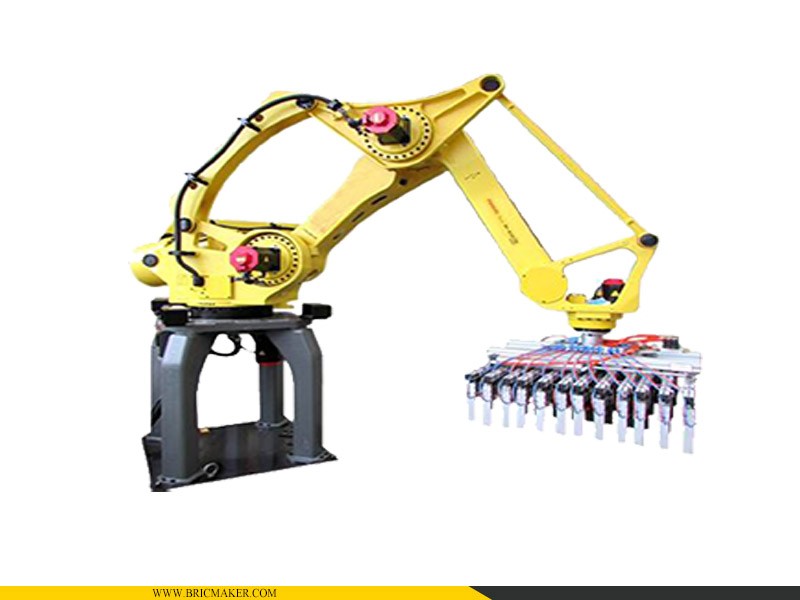

Bricmaker have two models of Fanuc robots with two loading capacity for option: 450KG and 700KG. The controller is integrated into the base of the robot, no need connection cables and easily setting. The robot’s mechanical wrist is with hollow structure, avoiding mechanical damage from robot cables. Bricmaker robot is equipped with the most advanced intelligence and the one of the best performance controller R-J3IC control.

To keep up with the most advance technology in the world, Bricmaker integrated Germany SEW gear motors, servo motors, Japan SMC pneumatic components, Italy Magodi synchronous belt with Fanuc Robot. Help their brick making customers build reliable, efficient, fully automatic brick factories.

Main parameters:

Models	M-410iB/450	M-410iB/700
Loading capacity	450kg	700kg
Stacking capacity	32-84 pcs/time	72-144 pcs/time
Motion frequency	240-360 times/h	200-300 times/h
Production capacity	9600-25200 pcs/h	20700-34560 pcs/h
Control axis numbers	4	4
Power	19 kw	21 kw
Weight	2430kg	2700 kg
