1. Brief introduction:


The aging warehouse is mainly used to age raw materials, make water diffuse evenly, improve raw materials’ plasticity after aging, and store them for a short period of time. The main equipment of aging warehouse are distributing machine and multi bucket excavator.

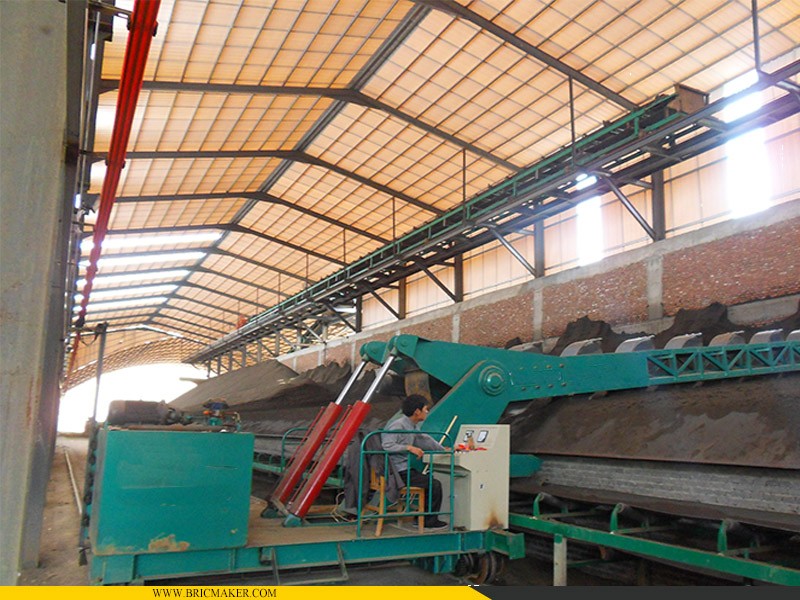

Reversible mobile distributing machine is driven by a roller installed on a fixed track, and the machine head is move on the track, thereby achieving uniform materials distribution inside the silo. It is one of the essential equipment in the aging warehouse for brick and tile production process.



2. Main technical parameters:

Model

Capacity:M3/h

Drive power: KW

Transmission power:KW

Dimension: MM

DS60X18-30m

40-50

3

3

600X18000-30000

DS60X30-50m

40-50

5.5

7.5

600X30000-50000

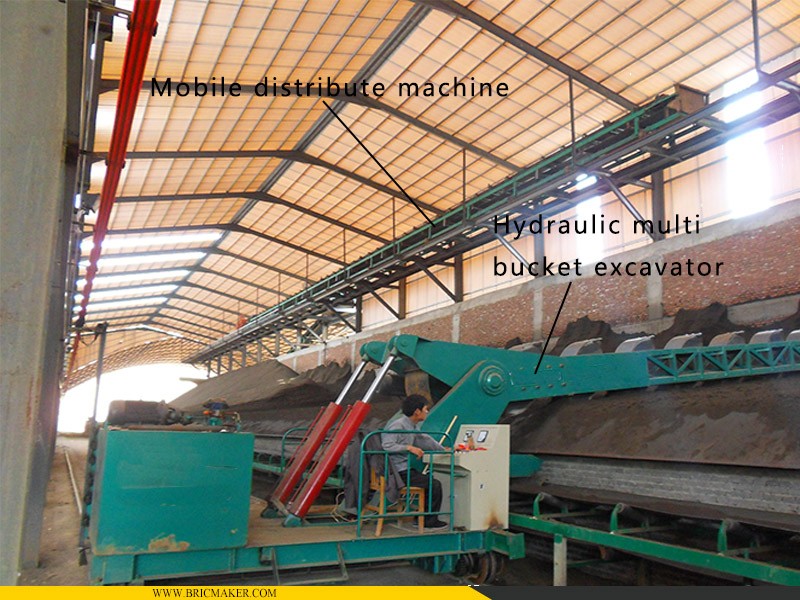

3. Diagram:




4. Advantages:


The H-shaped hanger design is adopted, and the H-shaped hanger moves as a whole during the materials distribution process. At the same time, both ends of the H-shaped hanger are also equipped with reversible belt conveyors to distribute materials in the horizontal direction of the aging pool. This design has a large storage capacity, a more uniform aging of materials, and better results, which is currently the most advanced aging method in the world.


5. Running video:
