Shaftless Roller Screen Crushed Raw Material Screen Equipment

Категория： Оборудование для обработки сырья
Production capacity: 40-80 t/h
Roller screen size: Ф2000×6000mm
Rotation speed: 16 RPM
Screen size: 3-6 mm
РАССЛЕДОВАНИЕ Почта

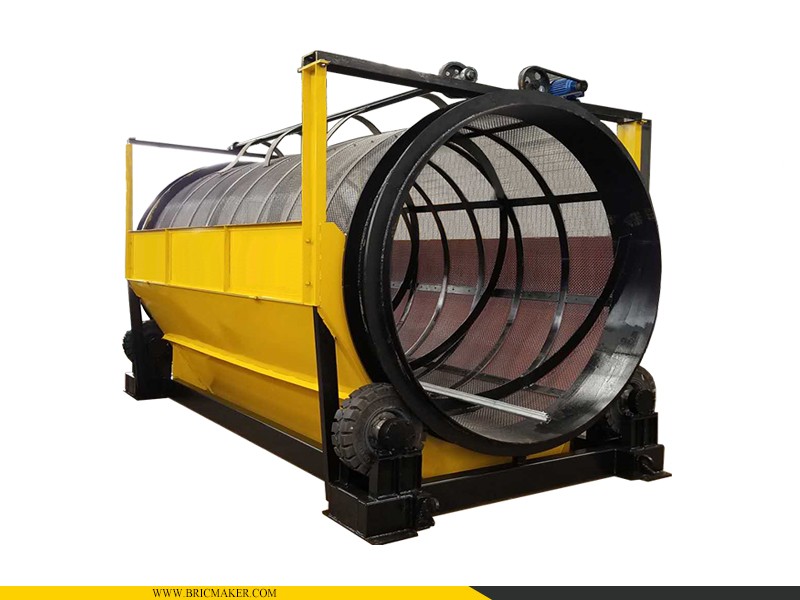

Shaftless Roller Screen Crushed Raw Material Screen Equipment

Brief introduction:

Our roller screen has no shaft and straight screen chamber. It is suitable for the screen of small granules materials with high moisture.

The screen machine is with good rigidity, reliable structure, low noise, high efficiency, high output, simple structure, easy maintenance, etc. The screen barrel is with a diameter of 2000mm and an inclination of 10°. Compared with regular market roller screens with shafts, our screen machine’s output is increased over 30%.

It has the characteristics of simple and reliable structure, unobstructed screen holes, stable operation, lower energy consumption, easily maintenance, simple and flexible processing layout.

With a diameter of 2000mm and an inclination angle of 10°, compared with similar roller screens with shafts, the output increased more than 30%.

Main technical parameters:

Model	GD200X600	WZX600X220	WZX700X240
Production capacity: t/h	40-80	80-120	100-150
Roller screen size: mm	Ф2000×6000	Ф2200×6000	Ф2400×7000
Rotation speed: RPM	16	15	15
Screen size: mm	3-6	3-6	3-6
Total power: kw	18.5	11+3	15+3
Overall dimensions: mm	8320×2820×3460	6600×3000×2600	7700×3000×2800
Total weight: kg	5,200	5,500	7,000
