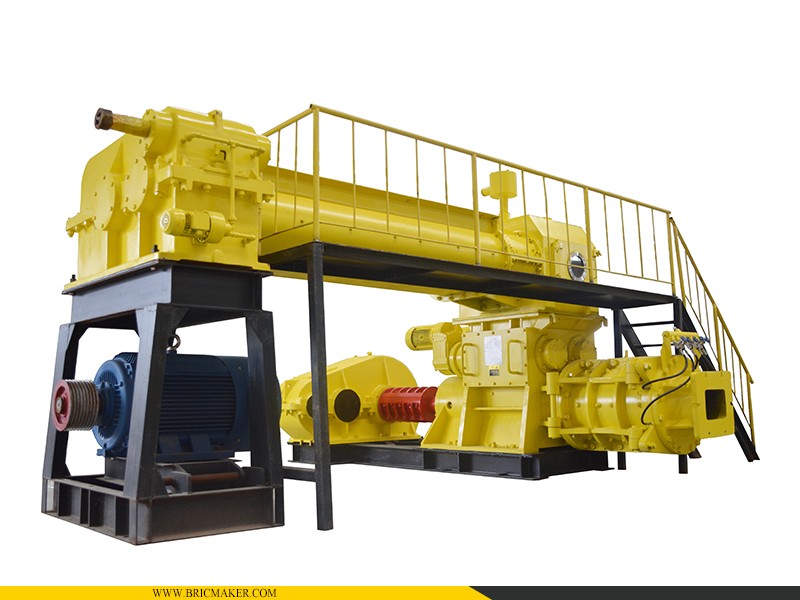

  • JKR45 2.0 Soft Plastic Vacuum Extruder Brick Extrusion Molding Machine

JKR45 2.0 Soft Plastic Vacuum Extruder Brick Extrusion Molding Machine

JKR45 2.0 Soft Plastic Vacuum Extruder Brick Extrusion Molding Machine


1. Brief introduction:

JKR45 2.0 Soft Plastic Vacuum Extruder is developed on basis on Spanish technologies. The Extruder is redesigned based on Chinese actual situation. The brick shaping machine has strong rigidity, compact structure, good sealing performance, and good extrusion stability, especially the gearbox and spindle assembly with unique design, and make it easy to assembly, operation and maintain.

This vacuum extruder is mainly used for soft plastic extrusion molding of raw materials like clay, mountain soil, fly ash , etc.


2. Main technical parameters:

Model

JKB50 3.0 Vacuum Extruder

Production Capacity

8,000-12,000 Pcs/h

Extrusion Pressure

2.0 Mpa

Extrusion Moisture

18-23 %

Vacuum Degree

≤-0.092 Mpa

Total Power

132 Kw

Overall Dimensions

4050×1500×2000

Total Weight

11,500 kg
