Green Brick Auto Turnover Group Stack Line Robot 450KG 500KG 700KG 800KG

1. Brief introduction

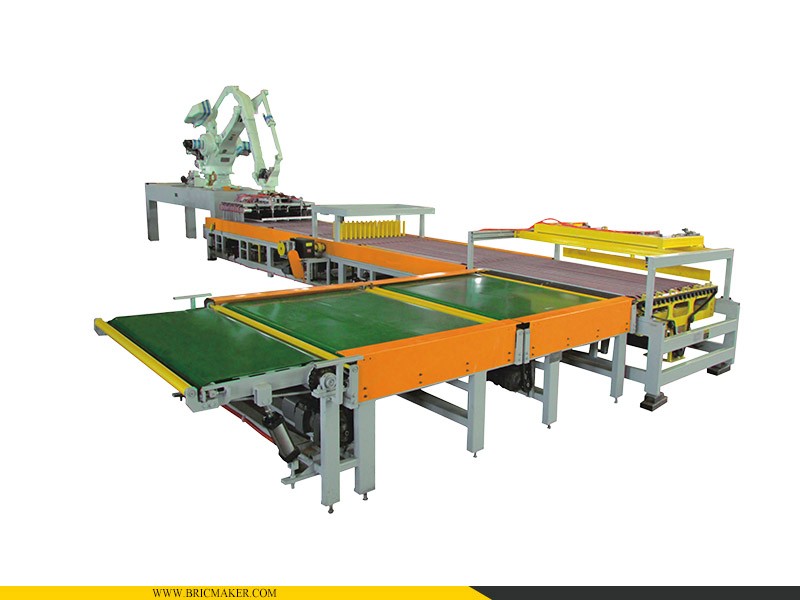

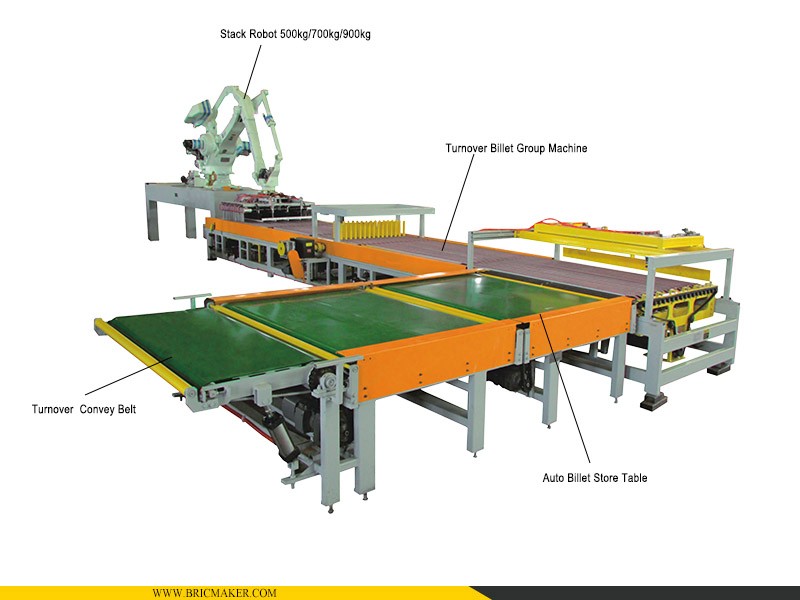

Green brick auto turnover group stack line is applied for automatic modern brick factory. It realizes the function of store, transfer, turnover, gap, stack bricks automatically. The whole process is controlled by PLC and no need manual work. The line is consisted of turnover belt conveyor, auto billet store table, billet turnover group machine, robot and PLC control system, etc.

Depending on customer's stack type, output requirement, brick sizes, we have different robots for customer's option： 450kg, 500kg, 700kg and 800kg.

2. Main features:

PLC control with name brand control module and electric components.
Applicable to wide ranges of brick sizes.
Applicable to customer’s stack type.
Turnover the green brick 90 degrees for more reasonable stack type.
Reliable, flexible, easy operation.
High automation, saving manual work.

3. Main technical parameters:

Robot Model	Unit	450KG	500KG	700KG	800KG
Quantity	set	1	1	1	1
Work Frequency	Times/h	240-400	240-400	200-300	200-300
Capacity	Pcs/h	14400-24400	14400-24400	20700-36720	20700-36720
Stacking Type	\	3X7, 4X6	3X7, 4X6	4X6, 6X18	4X9, 6X18
Total Power	kw	25～39+19	25～39+16.7	25～39+22	25～39+20.7
