Two Robots Auto Stack Line Green Brick Billet Transfer Turnover Group Stack Line

Категория： Системы резки и укладки
Application: green brick auto line
Capacity: 14000-36000 pcs/hour
Applicable brick size: customized
Brick turnover: Yes
РАССЛЕДОВАНИЕ Почта

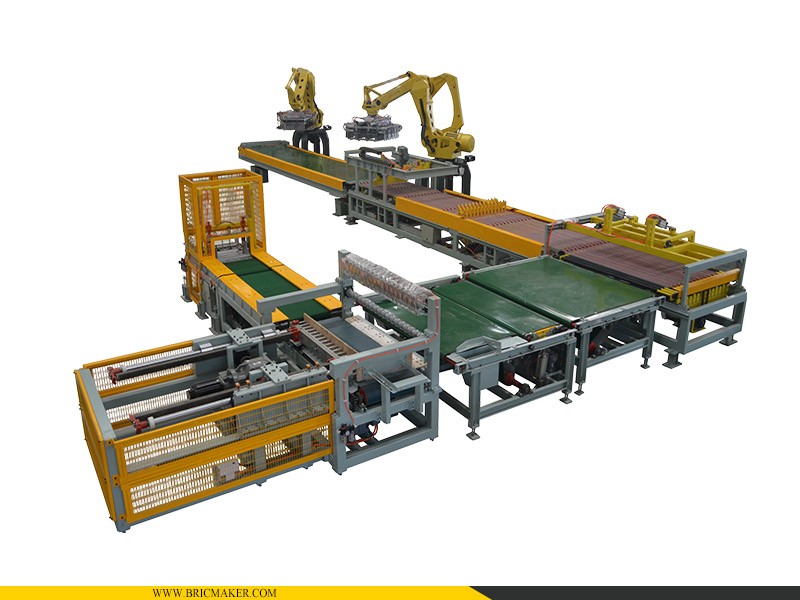

Two Robots Auto Stack Line Green Brick Billet Transfer Turnover Group Stack Line

1. Brief introduction

Two Robots Auto Brick Billet Turnover Group Stack line is applied for automatic modern brick factory. It realizes the function of store, transfer, turnover, gap, stack green brick automatically. Equipped with two robots, the system is more reliable and with wider stack areas.

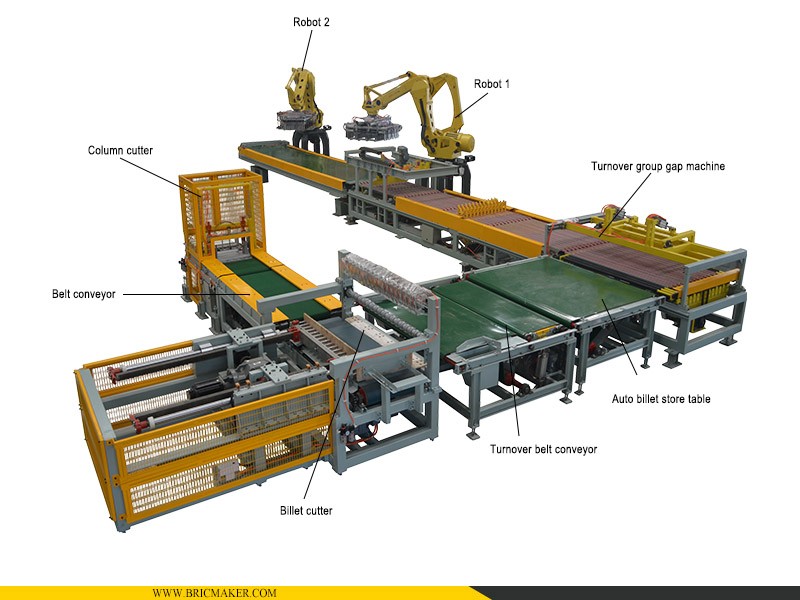

The line consists of turnover belt conveyor, auto billet store table, single billet turnover group table, two robots and PLC control system, etc.

2. Main features:

PLC control with name brand control module and electric components.
Applicable to wide ranges of brick sizes.
Applicable to customer’s stack type.
Turnover the green brick 90 degrees for more reasonable stack type.
Reliable, flexible, easy operation.
High automation, saving manual work.

3. Main parameters:

Robot Model	Unit	450KG	500KG	700KG	800KG
Quantity	set	2	2	2	2
Frequency	Times/h	240-400	240-400	200-300	200-300
Capacity	Pcs/h	14400-24400	14400-24400	20700-36720	20700-36720
Stacking Type	\	3X7, 4X6	3X7, 4X6	4X6, 6X18	4X9, 6X18
Total Power	kw	25-39+19*2	25-39+16.7*2	25-39+22*2	39+20.7*2
