  • Kilns' Refractory Materials Heat Insulation Ceramic Fiber Blanket
  • Kilns' Refractory Materials Heat Insulation Ceramic Fiber Blanket
Kilns' Refractory Materials Heat Insulation Ceramic Fiber BlanketKilns' Refractory Materials Heat Insulation Ceramic Fiber Blanket

Kilns' Refractory Materials Heat Insulation Ceramic Fiber Blanket

Kilns' Refractory Materials Heat Insulation Ceramic Fiber Blanket

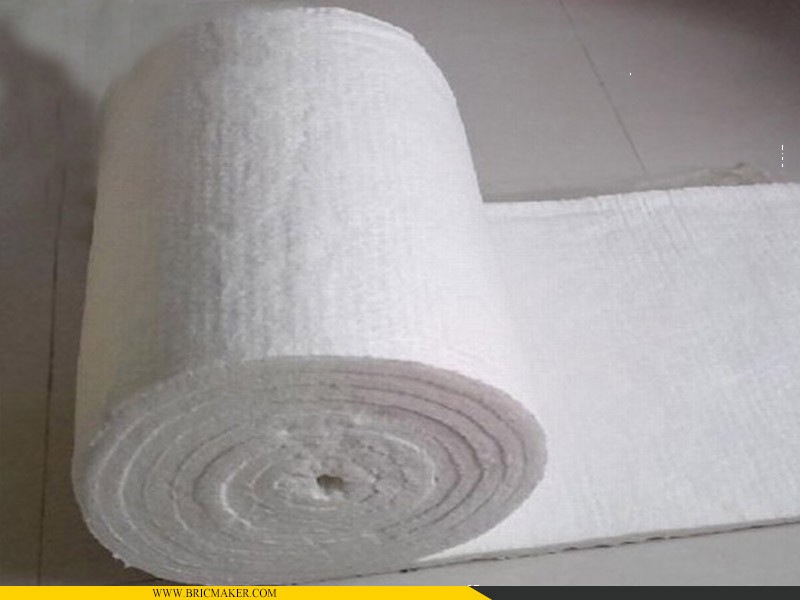

1. Brief introduction

The ceramic fiber blanket is made from special aluminum silicate ceramic fiber using a double-sided needle process. The degree of fiber entanglement, delamination resistance, tensile strength and surface flatness are significantly improved after the double-sided necessity process. In addition, the fiber mat does not contain any organic binders to ensure that the ceramic fiber mat has good processability and stability at high and low temperatures.


2. Main technical parameters

Product Category

Normal Ceramic Fiber Blanket

Standard Ceramic Fiber Blanket

High Purity Ceramic Fiber Blanket

High Alumina Ceramic Fiber Blanket

Low Zirconium Ceramic Fiber Blanket

Zirconium Ceramic Fiber Blanket

Classification Temperature

1050

1260

1260

1350

1350

1430

Heat Linear Shrinkage

950℃*24h≤4

1000℃*24h≤4

1100℃*24h≤4

1200℃*24h≤4

1250℃*24h≤4

1350℃*24h≤4

Shot Content(φ≥0.212mm)%

≤20

≤20

≤15

≤15

≤15

≤15

Tensile Strength(mpa)(Thickness 25mm)

≥0.04

≥0.04

≥0.04

≥0.04

≥0.04

≥0.04

Thermal Conductivity(average 500℃)w/(m*K)

≤0.153

≤0.153

≤0.153

≤0.153

≤0.153

≤0.153

Density (kg/m3)

96/128(Others customized)

Size

Length(3600/4500/5000/7200)* Width(610/1200)* Thickness(6-60)


3. Typical application

Industrial kiln, heating device wall lining and back lining thermal insulation.
High temperature kiln, heating device, wall lining and gap filler.
Raw materials for high temperature gasket, module, folding block
High temperature equipment’s thermal insulation
High temperature pipeline’s thermal insulation
Electric component’s thermal insulation and fire prevention.

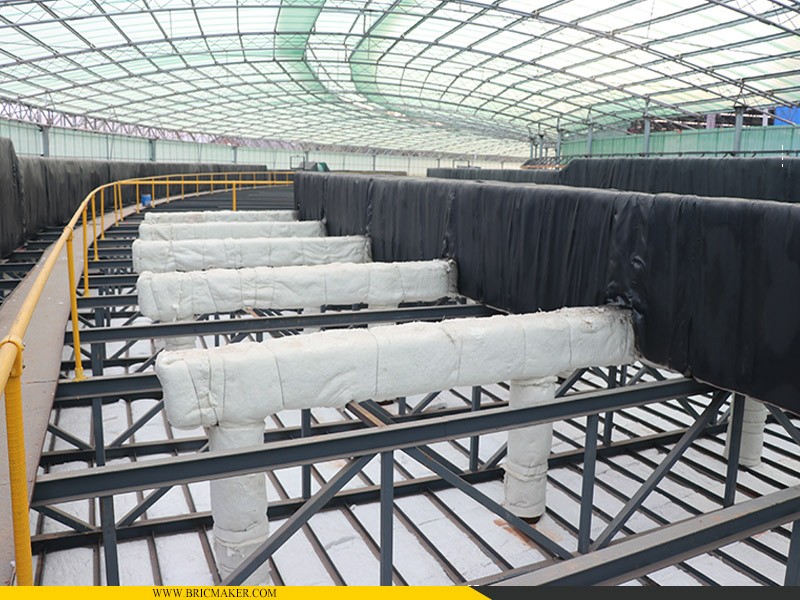

4. Application image:


5. Construction site video
