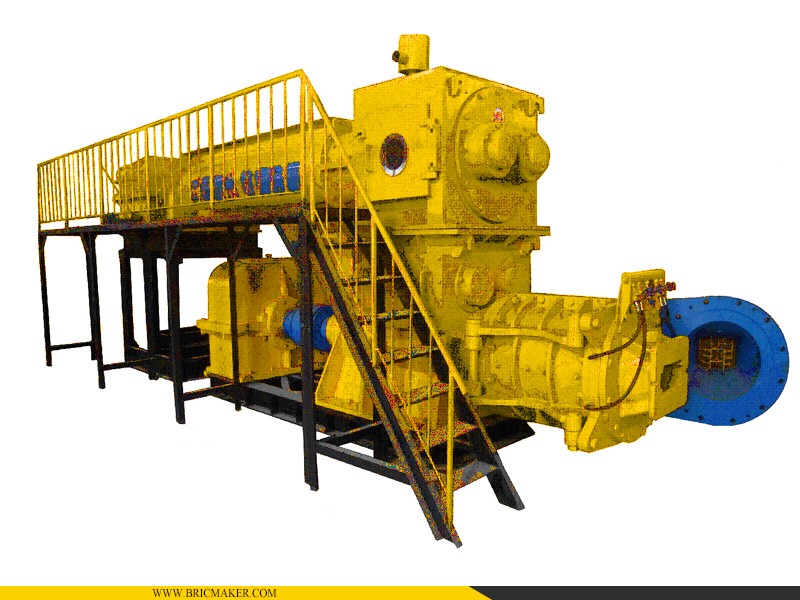

JKY60/50 - 3.0 Soft Plastic Vacuum Extruder Brick Extruding Machine

Категория： Вакуумные экструдеры
Model: JKY60/50 3.0
Production Capacity:15,000-23,000 pcs/h
Extrusion Pressure:3.0 Mpa
Extrusion Moisture:15-20%
РАССЛЕДОВАНИЕ Почта

JKY60/50 - 3.0 Soft Plastic Vacuum Extruder Brick Extruding Machine

1. Brief introduction:

JKY60/50-3.0 Vacuum extruder is developed on basis of JKB50/50-3.0 Vacuum extruder. The tank volume is designed bigger. The hourly output is 15,000-23,000 Pcs/h standard bricks. It is suitable to extrude green bricks from raw materials as barren mountain mud, shale, fly ash, coal gangue, etc.

The first stage of the gearbox adopt medium hard tooth gearbox and the 2nd stage of the gearbox adopt hard tooth gearbox, highly improved the contact strength. The main shaft adopts a floating shaft structure, which overcomes the phenomenon of head sway during operation.

2. Main technical parameters:

Model	JKY60/50 3.0 Vacuum Extruder
Production Capacity	15,000-23,000 Pcs/h
Extrusion Pressure	3.0 Mpa
Extrusion Moisture	15-20 %
Vacuum Degree	≤-0.092 Mpa
Total Power	120+90+7.5×2 Kw
Overall Dimensions	7330×2990×1800mm
Total Weight	32000kg
