The main components are branded products, such as synchronous belt - Shanghai Yongli, Japanese Huichuan servo motor, passenger pneumatic components (cylinder, solenoid valve) - Taiwan Yade, Japanese Omron PLC, Japanese Hequan relay, etc.
Flexible changing the type and size of the brick stack, could it meet the needs both of the internal and external combustion bricks. When applied in an internal combustion brick, it creates a small heap, increasing quality and efficiency, and saving more energy. When applied to an external brick, it creates a larger stack with bigger gap that is easy to dry and fire.
3. Technical parameters:
Robot model |
Qty(Set) |
Work frequency(times/h) |
Stack ability(Pcs/time) |
Output(pcs/hour) |
Power(kw) |
500kg |
2 |
240-360 |
(32-48)*2 |
28800-48800 |
5.5+22*2 |
700kg |
2 |
200-300 |
(72-108)*2 |
31000-55000 |
5.5+22*2 |
800kg |
2 |
200-300 |
(72-108)*2 |
31000-55000 |
5.5+20.7*2 |

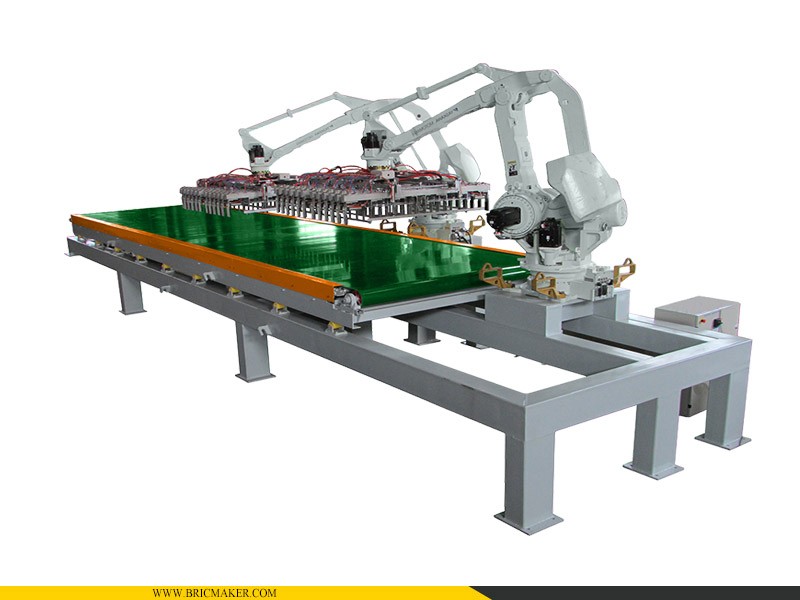

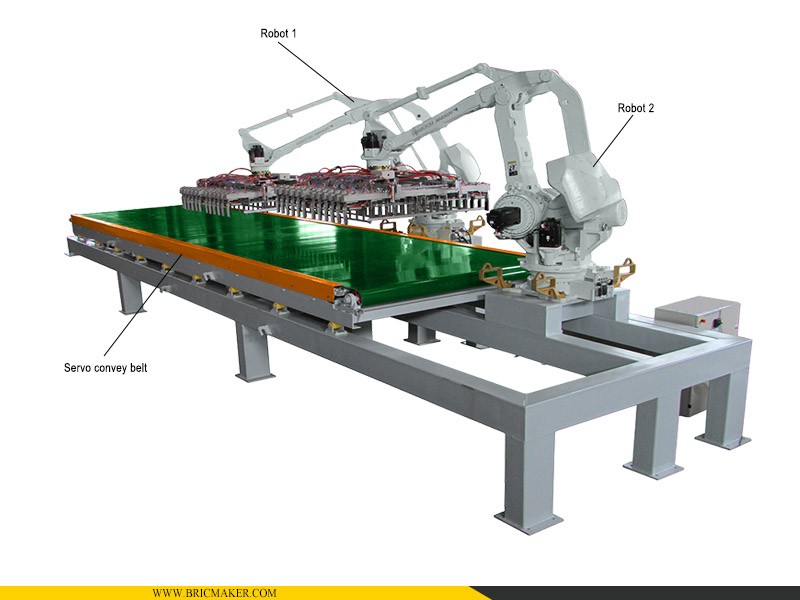

4. Detail image:
