Semi-Auto Clay Brick Production Line Hourly Output 10,000 PCS Green Bricks
1. Brief introduction:
This semi-auto clay brick production line is to adapt to small and middle brick factories. The hourly output is 10,000 to 15,000 pcs standard bricks. The raw material is clay soil. The whole brick making processes are: automatic soil feeding-soil fine crushing-soil mixing-vacuum extrusion-automatic cutter-manual unloading green bricks to dryer ground-manual stack and nature air dry-manual transfer the dried bricks to kilns-Manual stack bricks in kilns-fire bricks-unloading fired bricks. The features of this production line are low investment, higher output and lowest changes on original manual production technologies.
2. Main features:

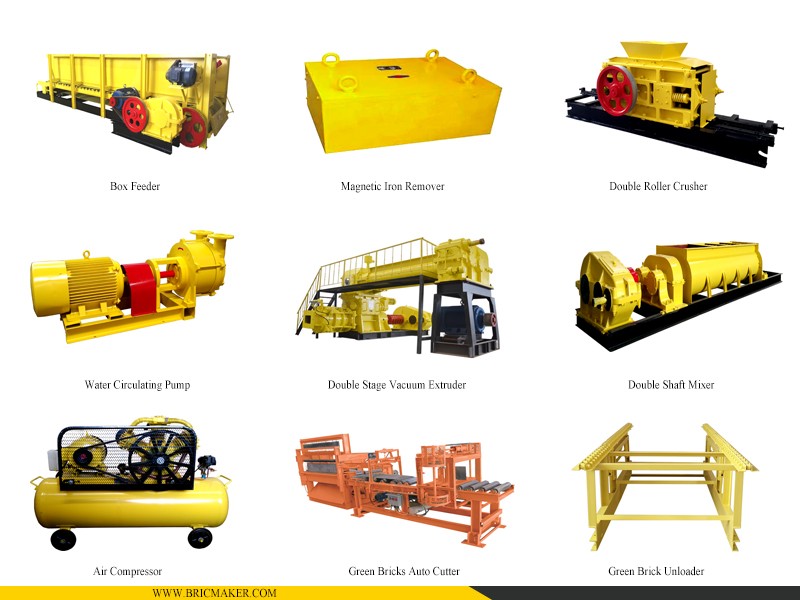

3. Main equipment configuration of the brick plant:
S/N | Equipment name | Model | Power(kw) | Qty(set) |
1 |
Box feeder |
XGD1000 |
7.5+3 | 1 |
2 | Magnetic iron remover |
RCYB-6.5 |
/ | 2 |
3 | Double roller crusher |
GS80x60 |
30X2X2 | 2 |
4 | Double shaft mixer | SJ400X37 | 55 | 1 |
5 | Double stage vacuum extruder | JKY55-4.0 | 275 | 1 |
6 | Water circling vacuum pump | ZGZB-12000 | 22 | 1 |
7 | Air compressor | W-0.9/7 | 7.5 | 1 |
8 | Auto program controlled cutter | QTF1+QPF1 | 9 | 1 |
9 | Green brick unloading machine | ZB-12 | / | 1 |

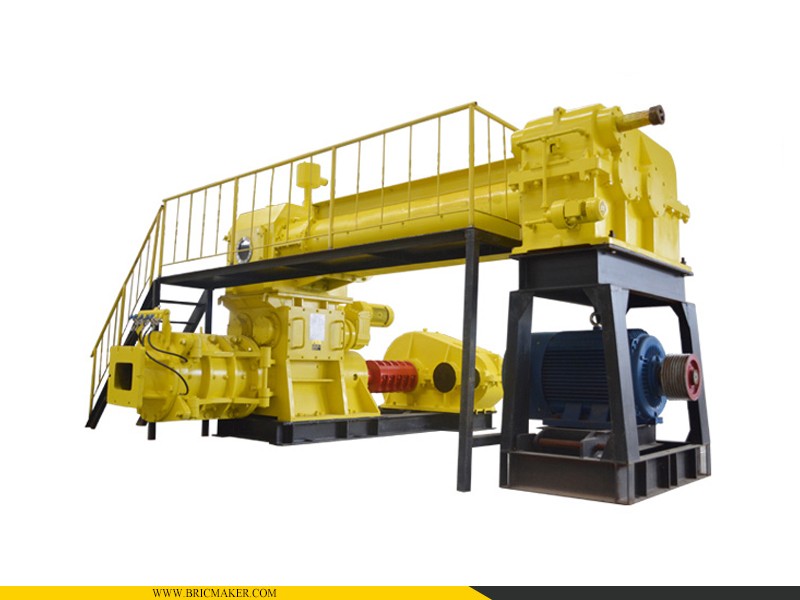

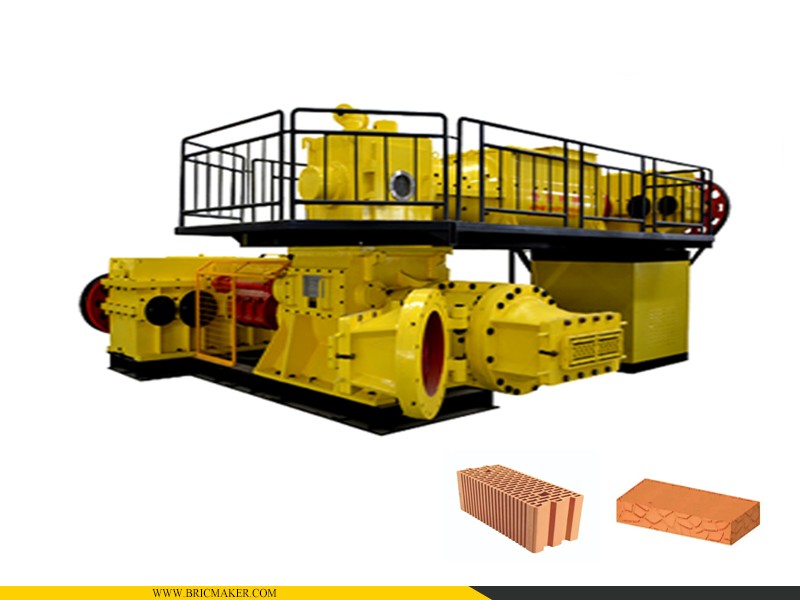

4. Main technical parameters of vacuum extruder:
Date | Units | JKY55/50-4.0 |
Production capacity | pcs/h | 10,000-15,000 |
Reamer diameter | mm | 550/500 |
Maximum extrusion pressure | Mpa | 4.0 |
Moisture content | % | 14-20 |
Vacuum degree | Mpa | ≤-0.092 |
Upstage shaft speed | r.p.m | 30-33 |
Downstage shaft speed | r.p.m | 22-26 |
Total power | kw | 185+75+7.5x2 |
Overall dimension | mm | 6500x320x2050 |
Total weight | kg | 25000 |
5. Equipment installation & commission:
Bricmaker has been contracting overseas brick factories newly built, old factory reform. We provide brick production technology consult, overall brick factory design, brick production equipment, equipment installation and commissioning, etc.
We will make seaworthy packing for our equipment.
The delivery period: within 45 days after advance payment.
7. To provide you tailor designed solution, kindly let us know details of your requirements as below:
