Daily Capacity 600 MT Hollow Blocks Auto Extrusion Drying & Firing Line


Brief introduction:

As high-end building materials, hollow blocks has the features of large size, thin wall, and high hole rates, which has higher and stricter requirements to the production technologies. Hollow blocks are normally made of pure clay, and the baking fuels could be natural gas, heavy oil or coal. We could design different thermal equipment based on customer different fuel to baking the blocks.


Main technical parameters:

Applicable blocks

Hollow clay block

Hollow ratio

75%

Block weight

10 kg

Block sizes

200x200x400mm, 350x150x200mm

Raw materials

Pure clay

Fuel

Natural gas, heavy oil or coal

Capacity

600 tons/24h, 70,000 pcs/24h

Production technology

two-time stack, two time baking

Dry cart number

200 sets

Firing kiln car number

68 sets


Production process of hollow blocks:

Raw material processing & storage → Vacuum extruder → Colum cutting → Green block cutting → Green block rack loading system → Drying cart → Top & Pull type ferry cart → Channels of drying kiln → Top & Pull type ferry cart → Green block rack unloading system → Dried green block grouping, transporting system → Kiln cart dried green block stacking → Heavy cart tractor →Top & Pull type ferry cart → Kiln of firing → Top & pull ferry cart → Heavy cart tractor → Block unloading → Finished product inspection → Auto Packing  →Delivery to warehouse

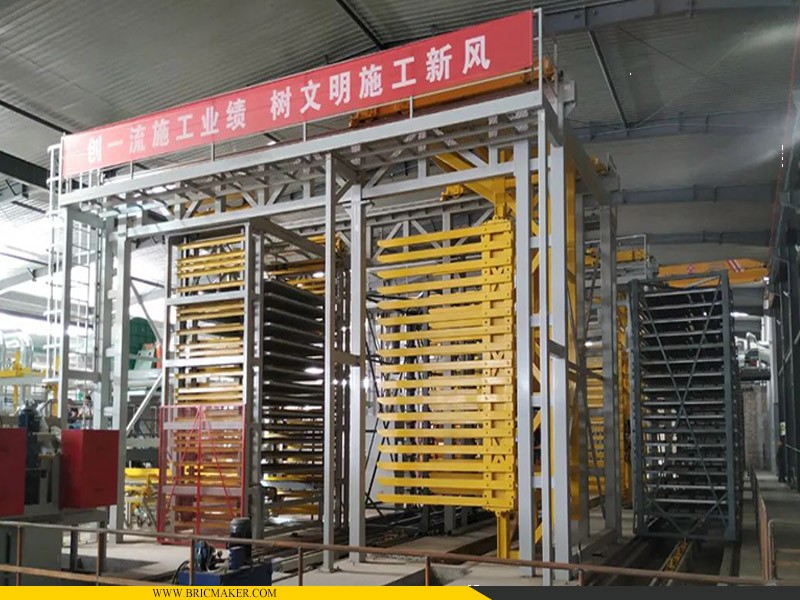

Video of clay hollow blocks line: vacuum Extrusion, cut, group, stack onto dry rack.
