Shaftless Roller Screen Crushed Raw Material Screen Equipment


Brief introduction:

Our roller screen has no shaft and straight screen chamber. It is suitable for the screen of small granules materials with high moisture.

The screen machine is with good rigidity, reliable structure, low noise, high efficiency, high output, simple structure, easy maintenance, etc. The screen barrel is with a diameter of 2000mm and an inclination of 10°. Compared with regular market roller screens with shafts, our screen machine’s output is increased over 30%.

It has the characteristics of simple and reliable structure, unobstructed screen holes, stable operation, lower energy consumption, easily maintenance, simple and flexible processing layout.

With a diameter of 2000mm and an inclination angle of 10°, compared with similar roller screens with shafts, the output increased more than 30%.


Main technical parameters:

Model

GD200X600

WZX600X220

WZX700X240

Production capacity: t/h

40-80

80-120

100-150

Roller screen size: mm

Ф2000×6000

Ф2200×6000

Ф2400×7000

Rotation speed: RPM

16

15

15

Screen size: mm

3-6

3-6

3-6

Total power: kw

18.5

11+3

15+3

Overall dimensions: mm

8320×2820×3460

6600×3000×2600

7700×3000×2800

Total weight: kg

5,200

5,500

7,000

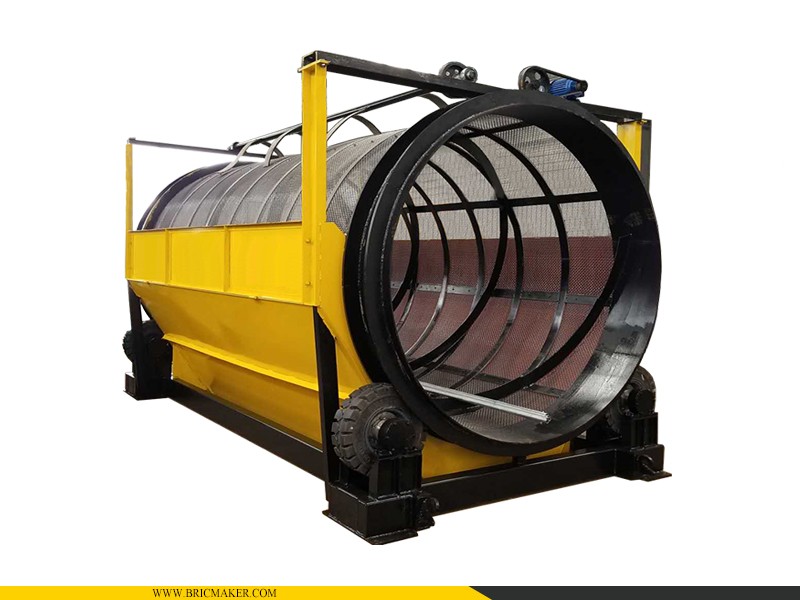

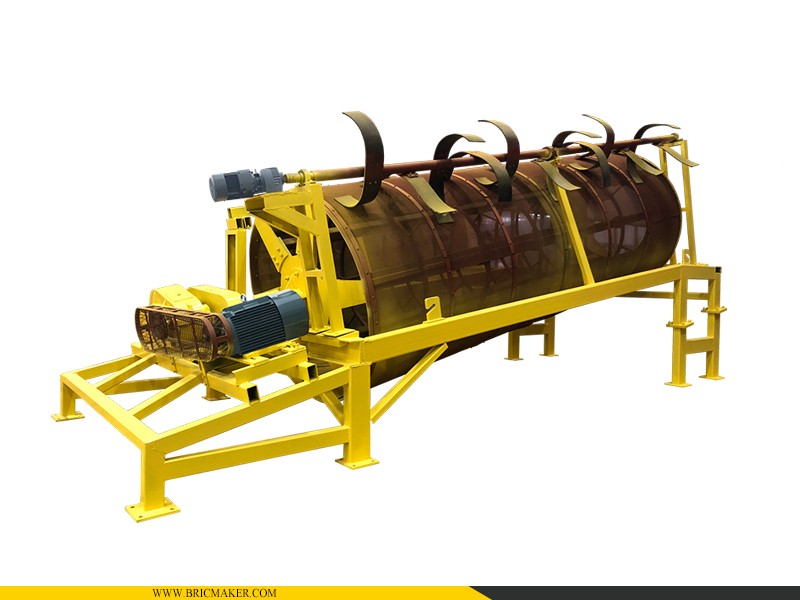

Detail image:
