PCX1210BII Adjustable Hammer Crusher Shale Coal Gangue Fine Crushing Machine

Loại： Brick's Raw Material Process Machines
Crushing output: 45-110t/h
Rotor size: Ф1200×1000mm
Feeding size: ≤80 mm
Output size:≤3 mm
CUỘC ĐIỀU TRA E-MAIL

Chi tiết sản phẩm

Thẻ sản phẩm

Video sản phẩm

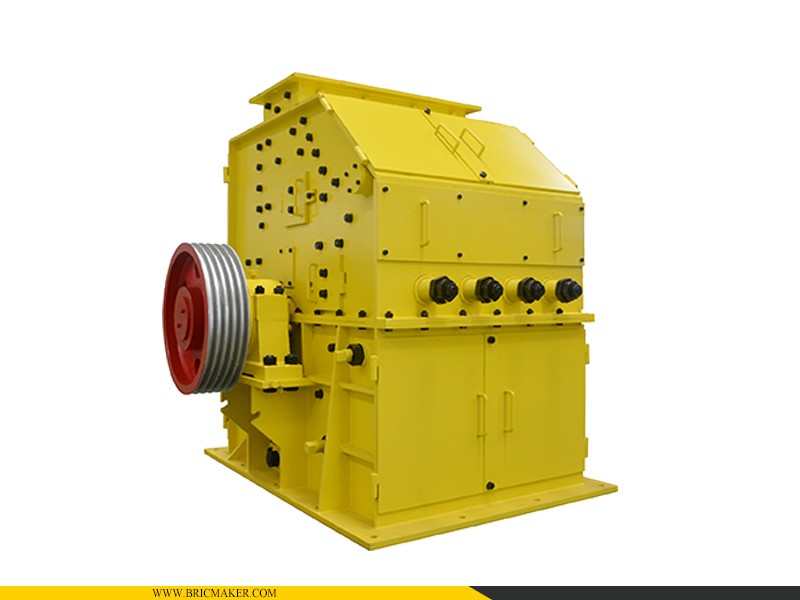

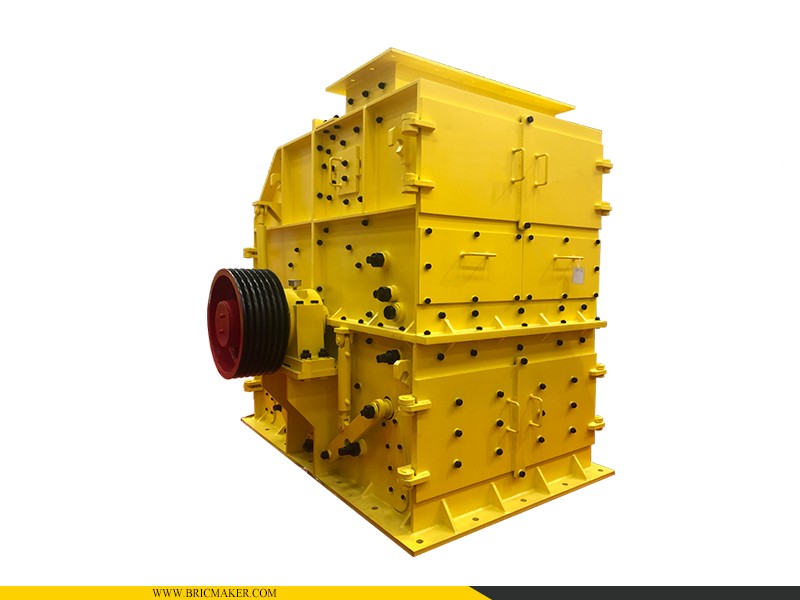

PCX1210BII Adjustable Hammer Crusher Shale Coal Gangue Fine Crushing Machine

Brief introduction:

PCX1210BII and PC1612 Adjustable Hammer Crusher is fine crushing equipment for brick making plant. The feeding raw materials particle size is not over 80mm and the output particle size is less than 3mm. This machine is idea selection for materials of hard shale, coal gangue, and ores.

This hammer crusher is adjustable and impact type crusher. The rotor reserves enough energy to allow the hammer head impact the raw materials and make the materials collide with the counterattack chamber, realizing fine crushing the materials.

The high wear-resistant counterattack liner improves the rate of hitting the material, thus achieving the purpose of finely crushing the material (particle gradation estimation: 30% below 0.5mm, 25% below 0.8mm, 30% below 1.5-2.0mm, 15% below 3.0mm).

The hammer crushing machine has greater impact, more dust, less returning material, and can automatically reduce dust. Compared with similar products, the output is about 30% higher and the output energy consumption is about 40% less.

The hammer head and wear-resistant liner are easily to replace, and the counterattack plate and the screen bottom plate are adjustable. It is an ideal equipment for crushing brick making raw materials like hard shale, coal gangue, ores, etc.

Main technical parameters:

Model	PCX1210BII	PC1612
Crushing output: t/h	45-70	80-110
Rotor size: mm	Ф1200×1000	Ф1600×1200
Feeding size: mm	≤80	≤100
Output size: mm	≤3	≤3
Feeding moisture: %	≤12	≤12
Total power: kw	185	315+2.2
Overall dimensions: mm	2380×1970×2120	2700×2800×2750
Total weight: kg	12,000	19,500
