Hollow Brick Automatic Production Line Vacuum Extruder


Brief introduction:

Hollow bricks are of large size, thin wall, and high hole rates, and normally produced by two stages baking.

Bricmaker had rich experiences in hollow bricks auto production lines in China and we offer economic and affordable hollow bricks auto lines.

The ‘two stack two baking stages’ for the production of hollow bricks is due to the whole process involves two times brick stack.  The 1st stack is to stack the wet green bricks onto drying racks. The 2nd stack is to stack the dried brick onto the firing kiln cars for baking. The group, transfer, load are all controlled by PLC and are fully automatically. Two baking refers to drying and firing. The hollow bricks are dried in multi channels tunnel drying kiln and fired in flat roof type tunnel kiln.


Main production process:

Raw material processing & storage (here omitting) → Vacuum extruder → Colum cutting → Green block cutting → Green block rack loading system → Drying cart → Top & Pull type ferry cart → Channels of drying kiln → Top & Pull type ferry cart → Green block rack unloading system → Dried green block grouping, transporting system → Kiln cart dried green block stacking → Heavy cart tractor →Top & Pull type ferry cart → Kiln of firing → Top & pull ferry cart → Heavy cart tractor → Block unloading → Finished product inspection → Auto Packing  →Delivery to warehouse


Main technical parameters:

Applicable blocks

Hollow clay block

Hollow ratio

75%

Block weight

10 kg

Block sizes

200x200x400mm, 350x150x200mm

Raw materials

Pure clay

Fuel

Natural gas, heavy oil or coal

Capacity

600 tons/24h, 70,000 pcs/24h

Production technology

two-time stack, two time baking

Dry cart number

200 sets

Firing kiln car number

68 sets

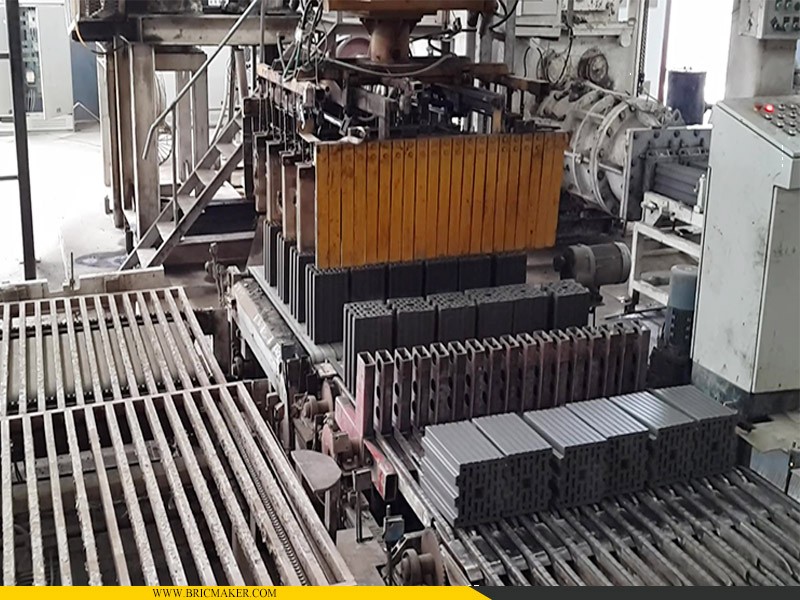

Wet bricks entering drying kiln:

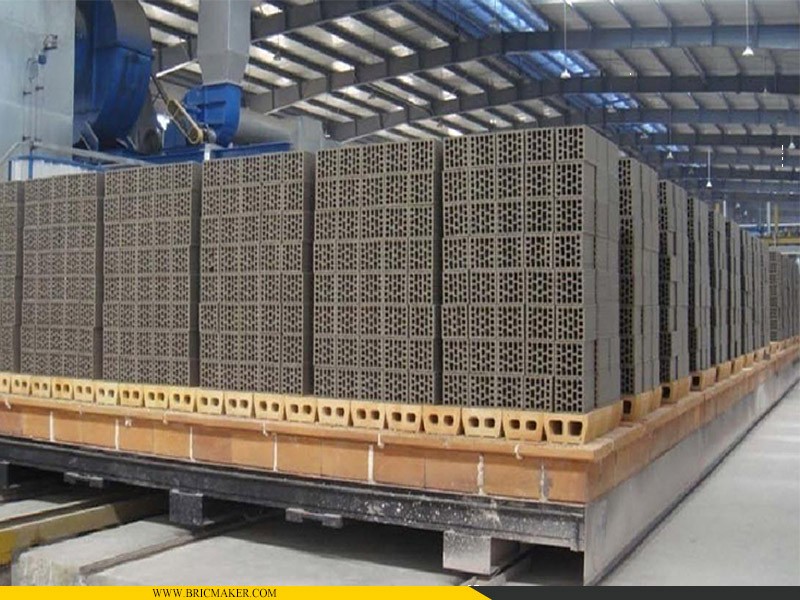

Dried bricks restack onto kiln car, ready for entering firing kiln:



Video of dried block unloading from drying rack.
