1. Brief introduction
Ceramic Fiber Blanket is made of special aluminum silicate ceramic fiber filament through double-sided needling process. The fiber’s interweaving degree, delamination resistance, tensile strength and surface flatness are greatly improved after double-sided needing process. Besides, the fiber blanket does not contain any organic binder to ensure the ceramic fiber blanket has good manufacturability and stability under high temperature and low temperature.
2. Main technical parameters
Product Category |
Normal Ceramic Fiber Blanket |
Standard Ceramic Fiber Blanket |
High Purity Ceramic Fiber Blanket |
High Alumina Ceramic Fiber Blanket |
Low Zirconium Ceramic Fiber Blanket |
Zirconium Ceramic Fiber Blanket |
Classification Temperature |
1050 |
1260 |
1260 |
1350 |
1350 |
1430 |
Heat Linear Shrinkage |
950℃*24h≤4 |
1000℃*24h≤4 |
1100℃*24h≤4 |
1200℃*24h≤4 |
1250℃*24h≤4 |
1350℃*24h≤4 |
Shot Content(φ≥0.212mm)% |
≤20 |
≤20 |
≤15 |
≤15 |
≤15 |
≤15 |
Tensile Strength(mpa)(Thickness 25mm) |
≥0.04 |
≥0.04 |
≥0.04 |
≥0.04 |
≥0.04 |
≥0.04 |
Thermal Conductivity(average 500℃)w/(m*K) |
≤0.153 |
≤0.153 |
≤0.153 |
≤0.153 |
≤0.153 |
≤0.153 |
Density (kg/m3) |
96/128(Others customized) |
|||||
Size |
Length(3600/4500/5000/7200)* Width(610/1200)* Thickness(6-60) |
3. Typical application
Industrial kiln , heating device wall lining and back lining thermal insulation
High temperature kiln, heating device, wall lining and gap filler
Raw materials for high temperature gasket, module, folding block
High temperature equipment’s thermal insulation
High temperature pipeline’s thermal insulation
Electric component’s thermal insulation and fire prevention.

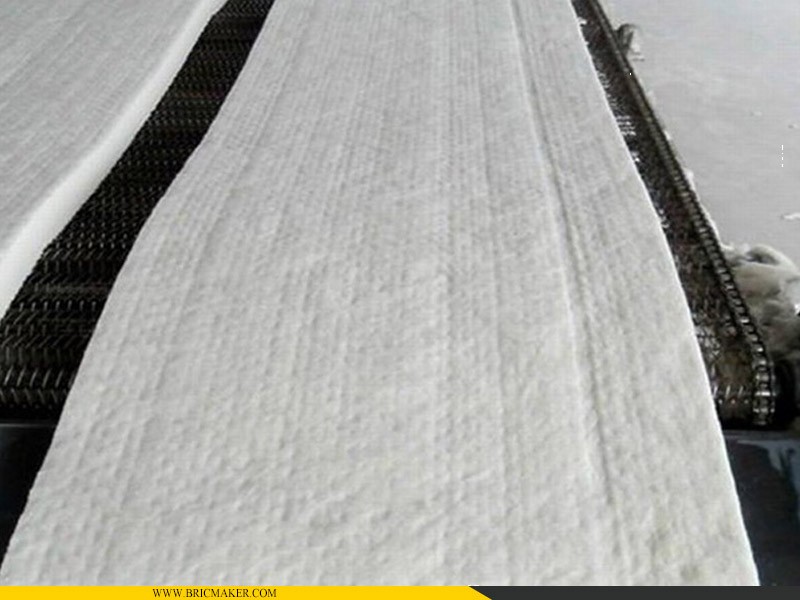

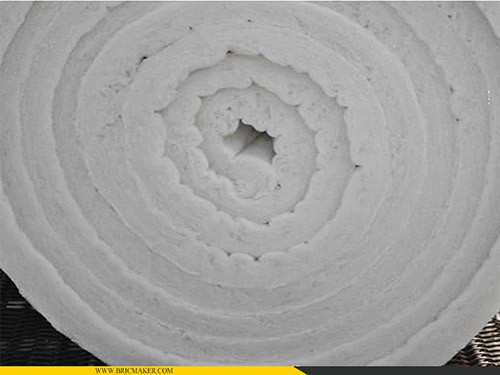

4. Detail images:
