Flat Roof Tunnel Kiln 8.6M Inner Width Burning 70,000PCS / 24 Hours Bricks


1. Brief introduction

Clay bricks tunnel kiln is the most popular thermal kiln for the features of continuous working, stable thermal parameters, big output and stable quality. Compared with traditional tunnel kiln with external fire type, this firing kiln has wider cross-section, and shorter cycling of firing.
Clay bricks tunnel kiln is composed of kiln body, kiln car and transferring equipment, burning system, air exhaust system, control system, etc.


2. Main features:

  • The entire kiln structure adopts the internationally advanced assembled tunnel kiln manufacturing process, with more standard construction, lighter kiln body, high degree of automation, long service life, and the appearance of the kiln is neat and beautiful.

  • The overall structure of the kiln car is under the premise of satisfying its load bearing, temperature resistance and reasonable service life.

  • All burning system is managed centrally by the computer system.

  • Reasonable designed waste heat recollection system.

  • Automatic firing process monitoring and controlling computer system.


3. Main technical parameters:

No.

Function & Item

Unit

Parameter & Index

Remarks

1

Type of kiln


Flat roof type tunnel kiln

2

Product type


Clay block

Hollow type

3

Daily capacity (single line)

pcs

≥70,000

400x200x200mm

4

Length of kiln

m

162.8


5

Width inside of kiln

mm

8600


6

Size of kiln cart

mm

3600x8600 (LxW)

7

Capacity of kiln cart

set

45 (inside of kiln)

Total 68

8

Loading capacity of each kiln cart

pcs

2160

Approx22 tons

9

Valid height of loading

mm

2050

Designing 10 layers

10

Block moisture before entering kiln

%

3~5


11

Firing temperature

950-1050

Designing 1150℃

12

Fuel type


Heavy oil

Thermal value: approx.

9500~10000 kcal/kg

13

Cycling of firing

H

24-40 adjustable

Designing 31.5H

14

Qualification rate of firing

%

≥98


15

Energy consumption per unit

kca/kg

≤350


16

Way of stacking & firing


2-time stacking & burning process,

Automatically loading & unloading

17

Way of smoke evacuation


Mechanical smoke evacuation

18

Control method


PLC/PID automatic intelligent instrument control system, IPC Management

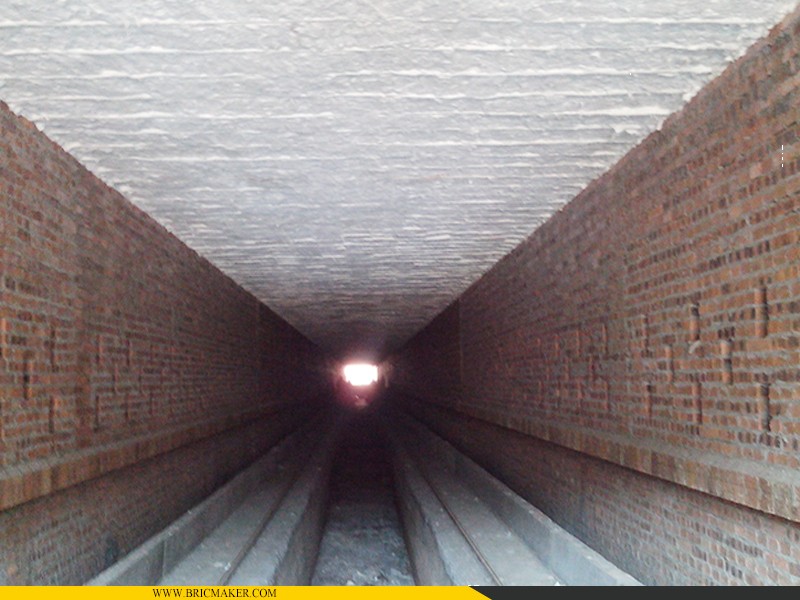

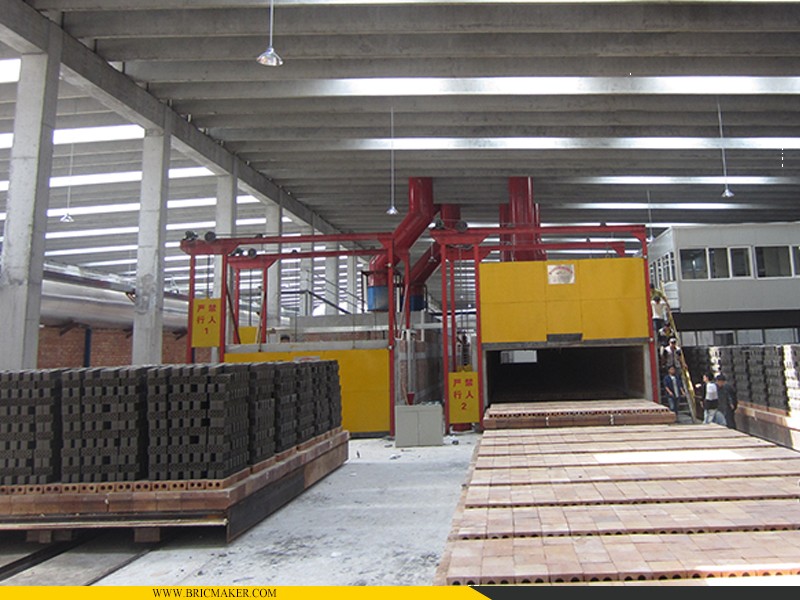

Detail images:
