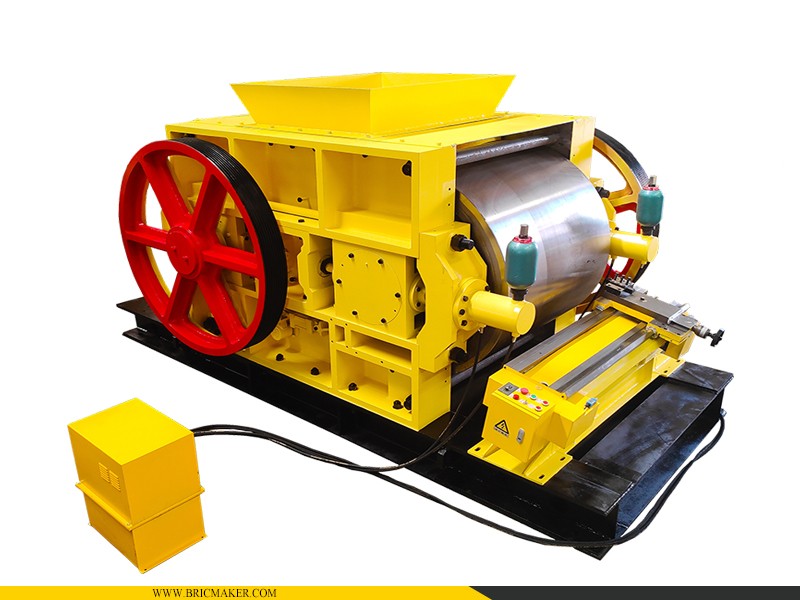

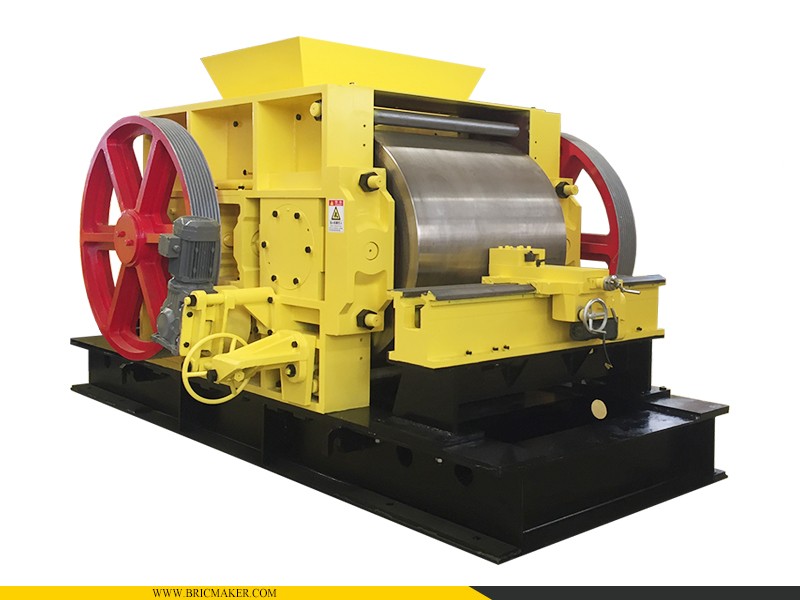

Double Roller Fine Crusher Mud Soil Refinement and Grind Machine

Category： Brick's Raw Material Process Machines
Crushing capacity:20-50 m3/h
Roller size:Ф700×500 mm
Feeding size:≤10mm
Feeding moisture:10-20%
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

Double Roller Fine Crusher Mud Soil Refinement and Grind Machine

Brief introduction:

High Speed double roller refinement Crusher is applied for second stage soil mud refinement and grinding. It is suitable for the raw materials whose hardness is below medium-hardness (Platins hardness 4-5), such as mountain mud and construction soil refinement and grinding. It is widely applied for clay brick making factories for the treatment of raw materials.
The crusher’s roller shell adopts wear-resistant material, with higher surface hardness, better wear resistance, and lower power consumption.

We offer series of crushers whose production capacity ranges from 20 cubic meters to 55 cubic meters.

Main technical parameters:

Models	GS70X50	GS80X60	GS100X70	GS100X80
Crushing capacity: m³/h	20-30	30-40	35-50	40-55
Roller size: mm	Ф700×500	Ф800×600	Ф1000×700	Ф1000×800
Double rollers gap: mm	≥3 adjustable	≥3 adjustable	≥2 adjustable	≥2 adjustable
Feeding size: mm	≤10	≤10	≤12	≤12
Feeding moisture: %	10-20	10-20	10-18	10-18
Total power: KW	18.5+18.5	30+30	45+55	55+75
Overall dimensions: mm	3400×1100×1250	3900×1300×1300	3300×1750×1860	3300×1850×1860
Total weight: kg	3,600	5,500	13,000	14,500
