Gantry Brick Stack Pile Grab Lift Machine Tunnel Kiln Rotary Kiln

Gantry Brick Stack Pile Grab Lift Machine Tunnel Kiln Rotary Kiln

Категория： Упаковочная машина из красного кирпича
Applicable brick type: Standard brick, porous brick, hollow block, etc
Applicable kilns: tunnel kiln and rotary kiln
Lifting height:1500-4500mm
Working stroke: 20-100m
РАССЛЕДОВАНИЕ Почта

Gantry Brick Stack Pile Grab Lift Machine Tunnel Kiln Rotary Kiln

1. Brief introduction

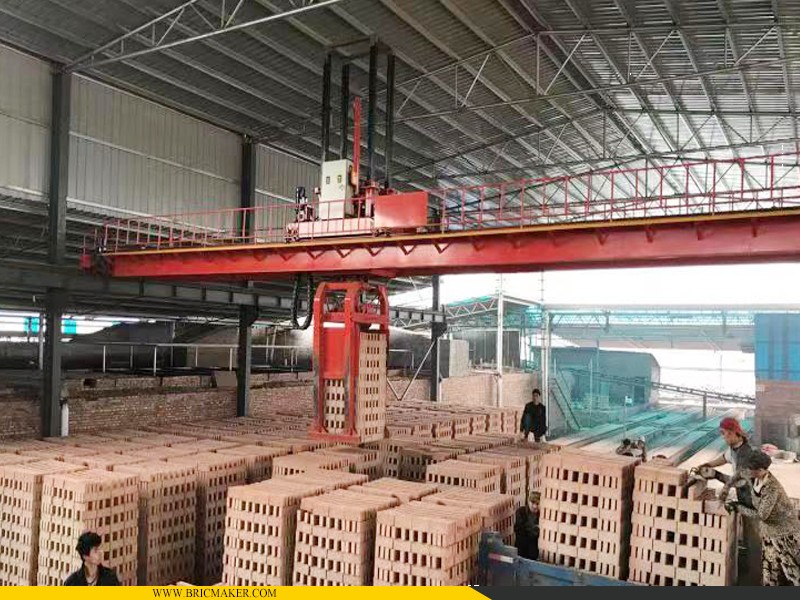

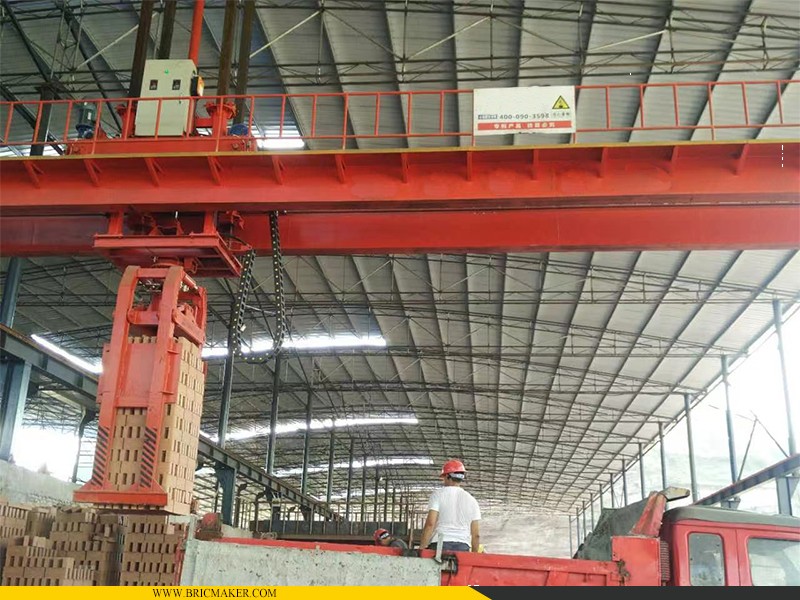

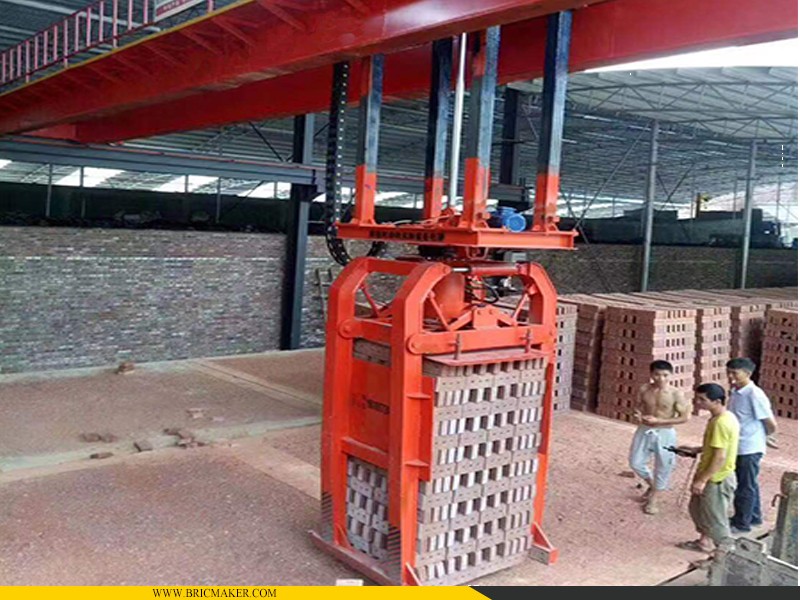

Gantry type brick stack grab & lift machine is widely used in tunnel kiln or rotary kiln. It is reliable and easy operation. The whole machine is made by welding steel with good rigidity and stability. The system is driven by stable hydraulic system and the holding operation accuracy is high. The elongate door frame structure with longer axle distance makes the machine working flexibly under heavy load.

2. Main technical parameters

Applicable brick type	Standard brick, porous brick, hollow block, etc
Lifting height	1500-4500mm
Crane span	8-35m
Crane stroke	20-100m
Grab weight	1000-5000kg
Grab thickness	200mm
Grab arm length	1200-4200mm
Tensile range	Open 1400mm, Tension 1200mm
Power	380V
Operating voltage	36V
Rotation angle	360°
Power consumption	24.5KW
Operation type	Wireless remote control
Control type	PLC, frequency conversion
