1. Brief introduction

Clay brick tunnel kiln is the most popular thermal kiln for baking building bricks because of its characteristics of continuous operation, stable thermal performance, high efficiency and stable quality. Compared to the traditional external tunnel oven, this oven has a larger cross-section and a shorter cooking cycle. clay brick tunnel kiln consists of kiln body, kiln car and conveyor equipment, combustion system, air exhaust system, control system, etc.

It adopts heavy oil as fuel to baking the bricks. The burning system adopts circulation return pipeline arrangement. The heavy oil is heated before supplied to each group of burners. The whole burning system is managed by computer system.


2. Main technical parameters:

No.

Function & Item

Unit

Parameter & Index

Remarks

1

Type of kiln


Flat roof type tunnel kiln

2

Product type


Clay block

Hollow type

3

Daily capacity (single line)

pcs

≥70,000

400x200x200mm

4

Length of kiln

m

162.8


5

Width inside of kiln

mm

8600


6

Size of kiln cart

mm

3600x8600 (LxW)

7

Capacity of kiln cart

set

45 (inside of kiln)

Total 68

8

Loading capacity of each kiln cart

pcs

2160

Approx22 tons

9

Valid height of loading

mm

2050

Designing 10 layers

10

Block moisture before entering kiln

%

3~5


11

Firing temperature

950-1050

Designing 1150℃

12

Fuel type


Heavy oil

Thermal value: approx.

9500~10000 kcal/kg

13

Cycling of firing

H

24-40 adjustable

Designing 31.5H

14

Qualification rate of firing

%

≥98


15

Energy consumption per unit

kca/kg

≤350


16

Way of stacking & firing


2-time stacking & burning process,

Automatically loading & unloading

17

Way of smoke evacuation


Mechanical smoke evacuation

18

Control method


PLC/PID automatic intelligent instrument control system, IPC Management


3. Tunnel Kiln simulation diagram

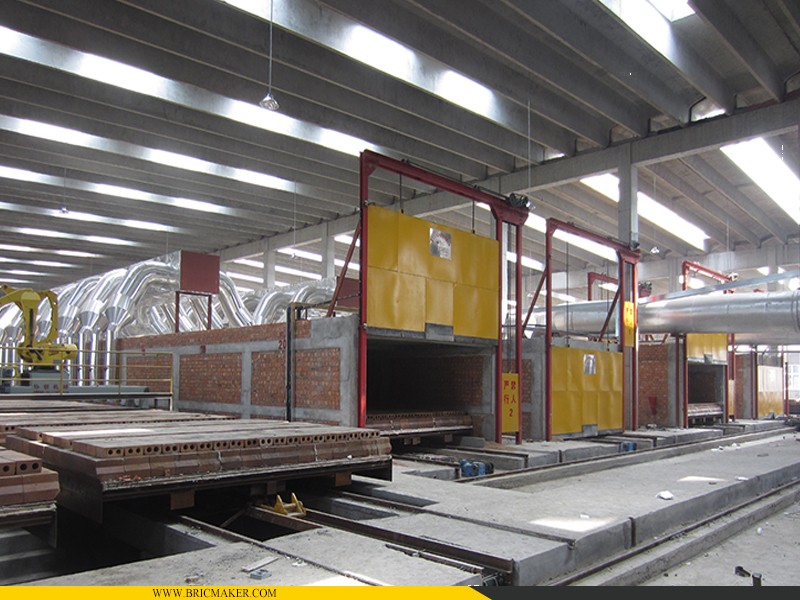

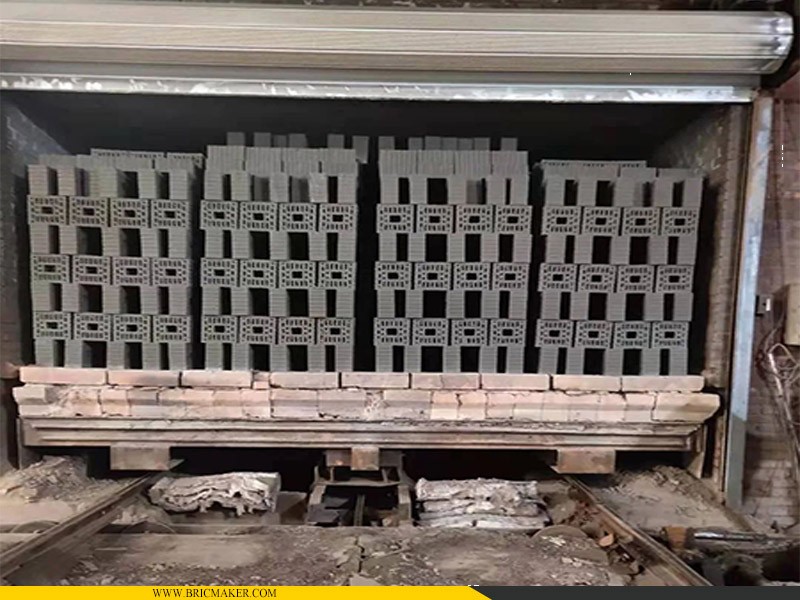

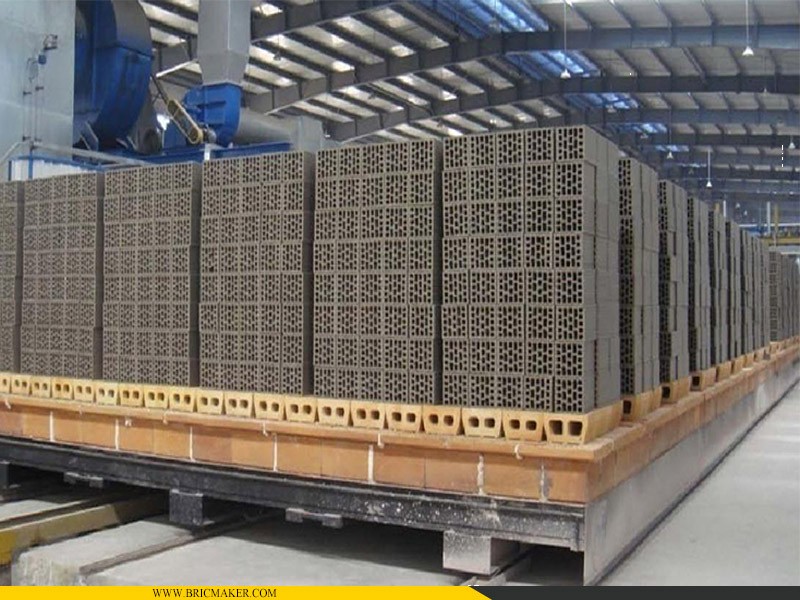

4. Detail images:
