1. Brief introduction:
Brick Stack Grab Lifter is used to grab the fired
red bricks from kiln cars or rotary kiln and load them onto trucks. It is
widely applied in red bricks factories. There are two types of brick stack
grabber: one is forklift type and another is gantry type.
The forklift type brick grabber is reformed based on forklift. It is used to grab piled bricks from kiln car directly or on the exit site of rotary kiln. So the fired red bricks still not be packed in into pallet. Most of the fired bricks are removed by manual work. So this brick grabber could save lots of man power and improve the efficiency. Besides, the cost is much lower than automatic robot. No matter the brick factory adopts tunnel kiln or rotary kiln, this brick grabber could adapt to the production plant flexibly.
The forklift type brick grabber is with high strength and wear resistance, ensure the brick piles grabbing and removing work done safely and continuously.
2. Why choose brick grab lifter for your brick factory?
(1) It can stack the bricks two or more layers, saves
floor space.
(2) It can load the brick piles directly onto the
truck, improving work efficiency.
(3) Not affected by working weather, no
need to stop production, and improve work efficiency.
(4) One time clamping to improve product
quality and quantity.
(5) Reduce the number of workers and reduce
the production and management costs of the enterprise.
(6) Improve the turnover efficiency of transfer
vehicles.
3. Technical parameters:
Applicable brick type
Standard brick, porous brick, hollow block, etc
Lifting height
2000-4500mm
Forklift truck
3000-7000kg
Red brick stack type
Customized
Working pressure
9-13 Mpa
Left and right movement
200mm
Clamp weight
1000-5000kg
Clamp thickness
Customized
Clamp arm length
Customized
Clamp range
Customized
Rotation angle
180-360°
Telescopic boom length
1000-5000 mm

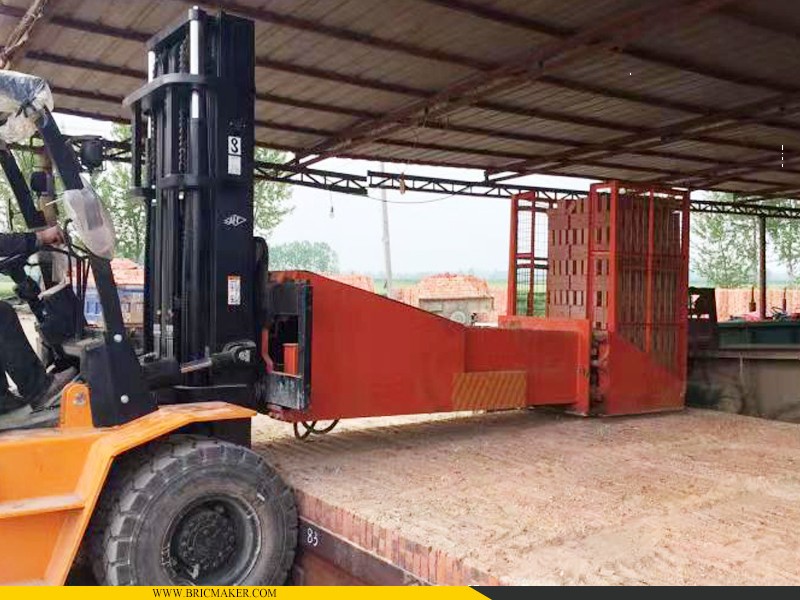

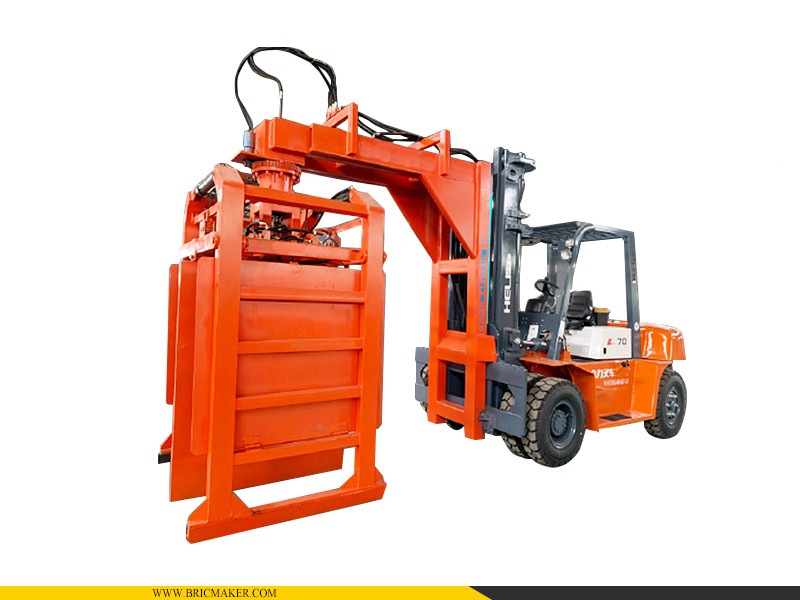

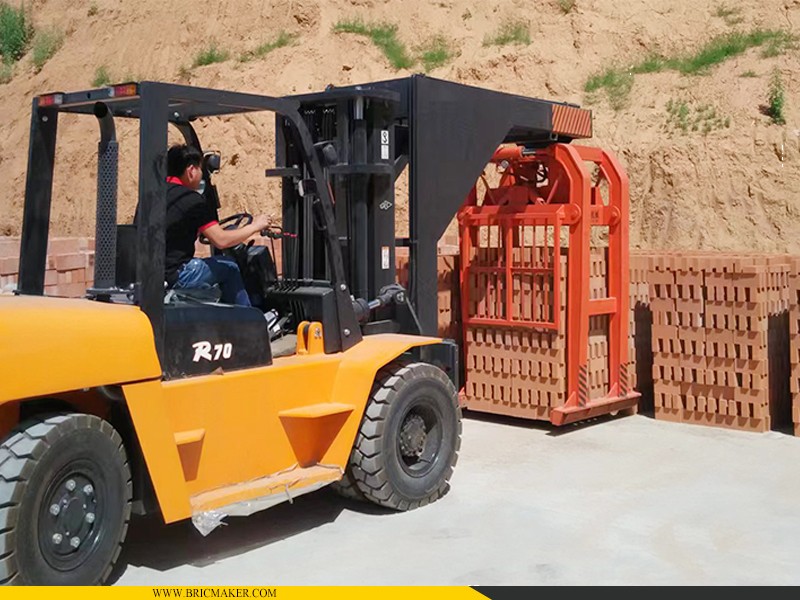

4. Detail images:
