Brief introduction:

The red bricks packaging line is specially applied for rotary kiln brick factory. The packaging line can move along the rotary kiln track to adapt to the position of red bricks in the rotary kiln.
This red bricks packaging line only requires a group of workers (about 10 people) to perform a simple brick unloading operation, transferring the red bricks to the transport roller conveyor. This operation is simple and labor-intensive.

The red bricks pallets are stacked by automatic robot, with preserved forklift holes. Then the packed pallets are bundled by two strapper packing machines.

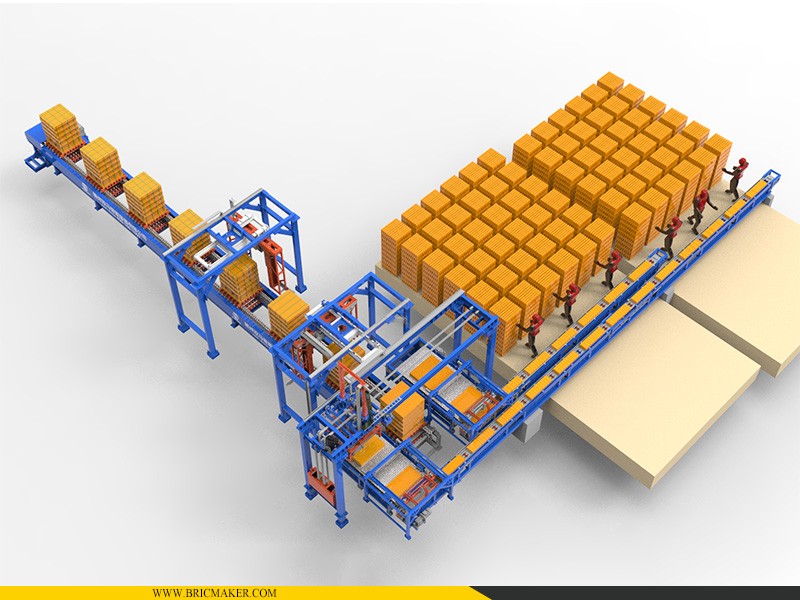

The red bricks packaging line mainly consists of billet transportation and storage roller conveyor, robot stack machine, longitudinal packaging machine, transverse packaging machine, and control system.
The height and stacking type of the bricks can be freely set by the customer, with automatic reserved forklift holes and no need for pallets. Multiple brick types can be switched with one click, and the output can be automatically calculated. All are controlled by electrical control, which is reliable, easy to maintain and operate.
Robot 90 ° cross stacking bricks, which is stable, not easy to scatter packages; Organize layer by layer, making the interior of the stack more compact.
The packaging tape is not easy to loosen and can achieve remote diagnosis and maintenance functions. It can be reset with one click when power is off.
The red bricks packaging line has been used in many rotary kiln factories both domestically and internationally, and proven satisfactory, greatly reducing manual labor during the brick factory packaging process and improving packaging efficiency.



Main advantages:

a. Wearing groove anti-collision safety device;
b. The strap machine head can approach the goods automatically, with a maximum travel of 350mm. The bundling belt tension balancing device ensures that the bundling belt is tightened and balanced around the goods;
c. Separate mechanical belt reel, suitable for 20-75kg PET strapping;
d. With human-machine interface and integrated control box;
e. Adopting digital intelligent packaging machine head: simple structure, easy maintenance, few vulnerable parts, and high tensioning force;
f. Freely adjustable tension force;


Main technical parameters:

Tension force 350kg(adjustable)
Packing speed 16S/Belt
Belt piercing speed 2-4.2m/s (adjustable)
Pallet sizes 1200*1200*1600mm (or customized)
Belt material PET
Belt sizes Width:12-16mm, thickness:0.5-0.8mm, or customized
Belt welding method High frequency friction (Pneumatic/electric)
Belt welding speed 0.3~1.5m/s (adjustable)
Belt welding strength 96% of master belt (national standard: 80%)
Power 3.5KW
Air pressure 0.7MPa
Equipment dimension 3200*1800*3400mm

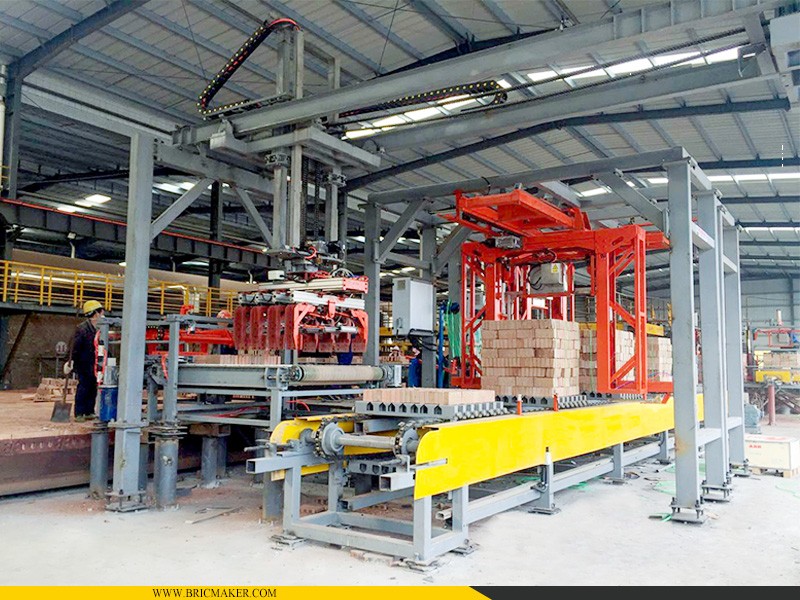

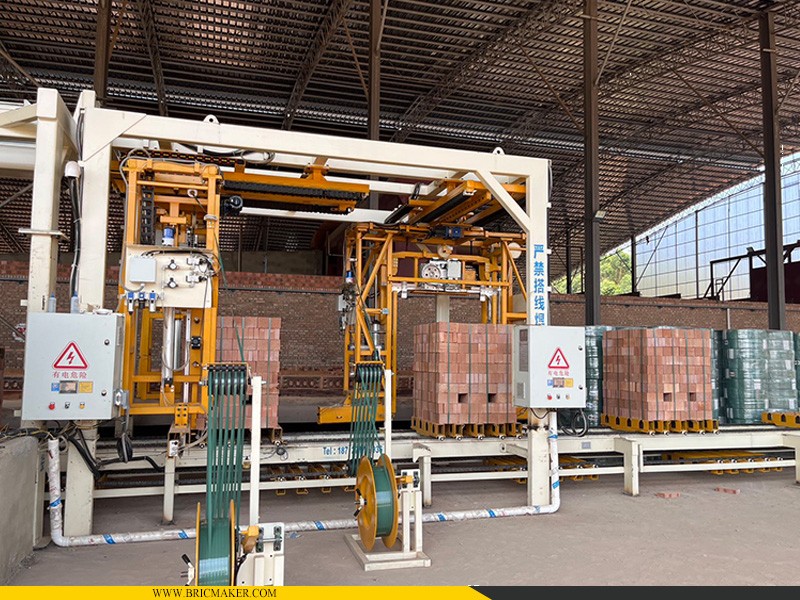

Application photos:





Our core Advantages of Packing Machine Head:

1)Pneumatic friction is good for strap joint and doesn’t require high environmental temperature; While if hot melt connection, it has requirement about the environment temperature.
2)Servo drive technology, tightening the packaging belt by 2-3 times, unlike the previous tightening once; the servo precision control, repeatedly tightening to ensure the tightness of the packaging belt, and no strict requirement about the packaging belt.
3)Easy maintenance, modular design, and complete component replacement within 10 minutes
4)Our own CNC machine processes the machine head with very high accuracy; Control the accuracy by ourselves and continuously improve it; There is no other packaging machine suppliers in China processes this core components by themselves.
5)Our market share in packaging machine heads is very large, with thousands of units per year, which provides us more experience and opportunities for continuous improving our machines compared to other companies; to ensure more stable and lower failure rate equipment to our customer
6)Motors for the brick stacking chain plate conveyor, brick stacking roller table, and brick stacking chain plate machine are all variable frequency and adjustable speed motors; The packaging machine head is equipped with walking motor and packaging motor, both of which are servo motors
