  • Spiral Stone Remove Machine Soil Stone Remover
  • Spiral Stone Remove Machine Soil Stone Remover
Spiral Stone Remove Machine Soil Stone RemoverSpiral Stone Remove Machine Soil Stone Remover

Spiral Stone Remove Machine Soil Stone Remover

Spiral Stone Remove Machine Soil Stone Remover


Brief introduction:

Spiral stone remove machine is used to remove the stones from brick making raw materials. It is especially suitable for the raw materials below medium-hardness (Platins hardness 4-5), such as mountain mud and construction soil’s coarse crushing and stone removal.
It can effectively rolling and kneading the materials between the two rollers. The crushed material drop to the conveyor belt from below, and the stones are removed through the stone discharge port to realize removing stones in the mud.
The entire machine is composed of a spiral roller assembly and a flat roller assembly, with a compact structure. The surface of the spiral roller sleeve is coated with wear-resistant material, with higher surface hardness, better wear resistance, stronger stone removal effect, and lower power consumption.


Main technical parameters:

Models

2PGL80X60

2PGL100X70

2PGL100X100

Production capacity :m3/h

50-60

80-90

80-100

Roller size : mm

Ф800×600

Ф1000×700

Ф1000×1000

Total power :kw

30+30

30+45

45+55

Overall dimensions: mm

3600×1200×1450

3300×1750×1860

3300×2000×1860

Total weight :kg

5,500

12,000

15,000

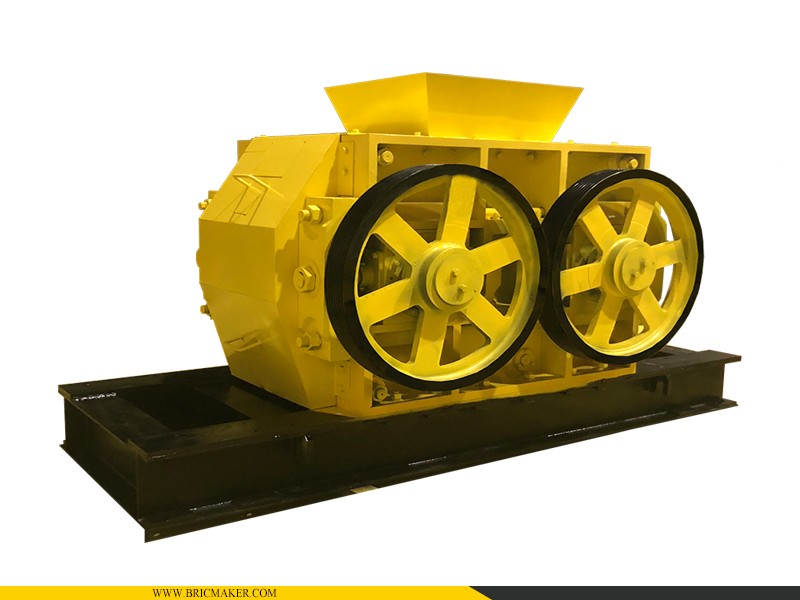

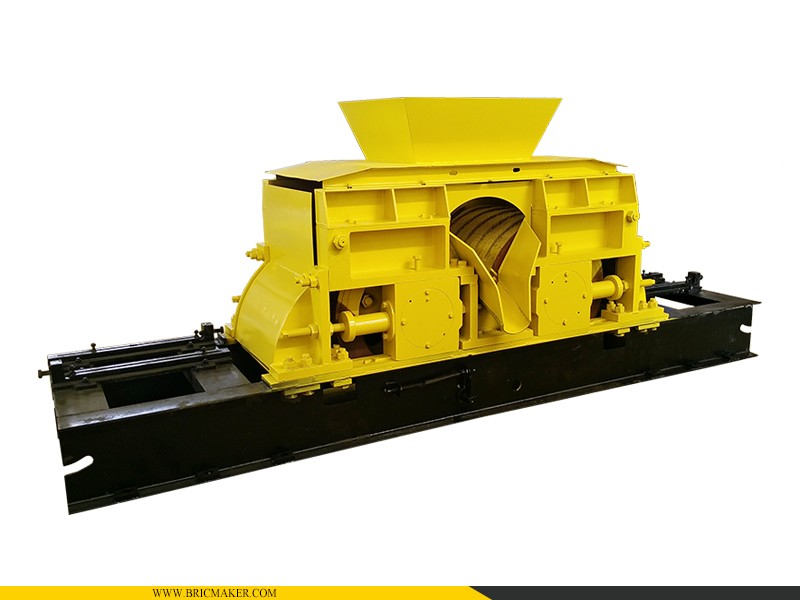

Detail image:
