Green Brick Auto Turnover Group Stack Line Robot 450KG 500KG 700KG 800KG



1. Brief introduction

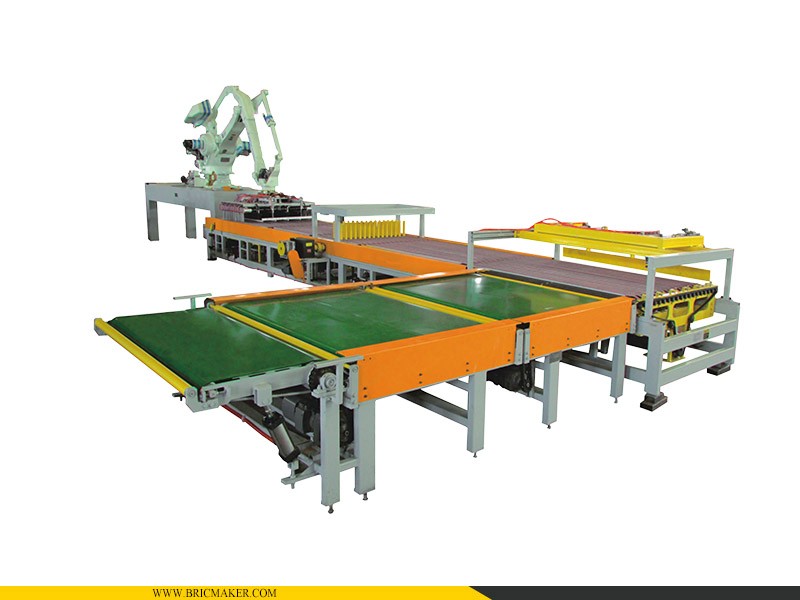

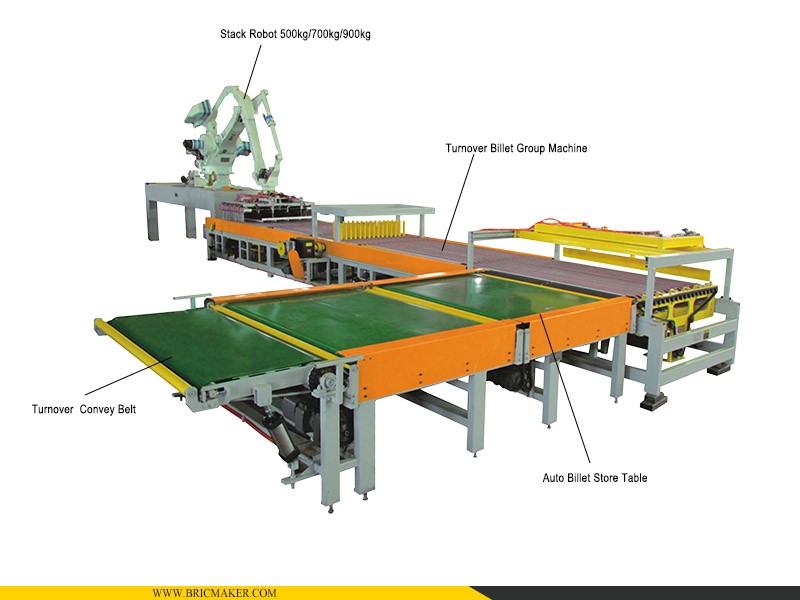

Green brick auto turnover group stack line is applied for automatic modern brick factory. It realizes the function of store, transfer, turnover, gap, stack bricks automatically. The whole process is controlled by PLC and no need manual work. The line is consisted of turnover belt conveyor, auto billet store table, billet turnover group machine, robot and PLC control system, etc.

Depending on customer's stack type, output requirement, brick sizes, we have different robots for customer's option: 450kg, 500kg, 700kg and 800kg.


2. Main features:

  • PLC control with name brand control module and electric components.
  • Applicable to wide ranges of brick sizes.
  • Applicable to customer’s stack type.
  • Turnover the green brick 90 degrees for more reasonable stack type.
  • Reliable, flexible, easy operation.
  • High automation, saving manual work.


3. Main technical parameters:

Robot Model

Unit

450KG

500KG

700KG

800KG

Quantity

set

1

1

1

1

Work Frequency

Times/h

240-400

240-400

200-300

200-300

Capacity

Pcs/h

14400-24400

14400-24400

20700-36720

20700-36720

Stacking Type

\

3X7, 4X6

3X7, 4X6

4X6, 6X18

4X9, 6X18

Total Power

kw

25~39+19

25~39+16.7

25~39+22

25~39+20.7


4. Detail image:
