JKR45 2.0 Soft Plastic Vacuum Extruder Brick Extrusion Molding Machine

Loại： Vacuum Extruder
Model: JKB50 3.0
Output: 8,000-12,000 Pcs/h
Extrusion pressure: 2.0 MPa
Extrusion moisture: 18-23%
CUỘC ĐIỀU TRA E-MAIL

Chi tiết sản phẩm

Thẻ sản phẩm

Video sản phẩm

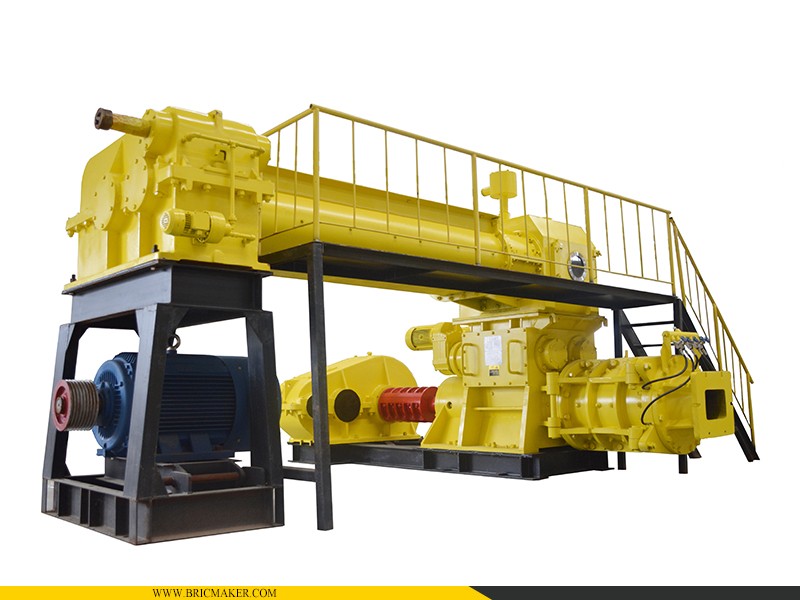

JKR45 2.0 Soft Plastic Vacuum Extruder Brick Extrusion Molding Machine

1. Brief introduction:

JKR45 2.0 Soft Plastic Vacuum Extruder is developed on basis on Spanish technologies. The Extruder is redesigned based on Chinese actual situation. The brick shaping machine has strong rigidity, compact structure, good sealing performance, and good extrusion stability, especially the gearbox and spindle assembly with unique design, and make it easy to assembly, operation and maintain.

This vacuum extruder is mainly used for soft plastic extrusion molding of raw materials like clay, mountain soil, fly ash , etc.

2. Main technical parameters:

Model	JKB50 3.0 Vacuum Extruder
Production Capacity	8,000-12,000 Pcs/h
Extrusion Pressure	2.0 Mpa
Extrusion Moisture	18-23 %
Vacuum Degree	≤-0.092 Mpa
Total Power	132 Kw
Overall Dimensions	4050×1500×2000
Total Weight	11,500 kg
