500KG/700KG Kawasaki Controller Stack Robot Green Brick Auto Stack


Brief introduction:

Kawasaki Controller Robot is the most advanced intelligent green brick stacking robot. It is flexible, efficient, stable and with high capacity. By integrating high quality components and reasonable design, Bricmaker stack robot is stable, safety and low failure rate.
Bricmaker have two models Kawasaki robots with two loading capacity for option: 5000KG and 700KG. The controller is integrated and mounted onto the base of the robot, no need connection cables and is easy to set. The robot’s mechanical wrist is designed in hollow, avoiding mechanical effect by robot cables. Bricmaker robot is equipped with the most advanced intelligence and the one of the best performance controller R-J3IC control.
To keep up with the most advance technology in the world, Bricmaker integrated Germany SEW gear motors, servo motors, Japan SMC pneumatic components, Italy Magodi synchronous belt with Kawasaki Robot. Help our brick making customers build reliable, efficient, fully automatic brick factories.



Main parameters:

Models

CP500L

CP700L

Loading capacity

500kg

800kg

Stacking capacity

32-84 pcs/time

72-144 pcs/time

Motion frequency

240-360 times/h

200-300 times/h

Production capacity

9600-25200 pcs/h

20700-34560 pcs/h

Control axis numbers

4

4

Power

22 kw

22 kw

Weight

1650kg

2100 kg

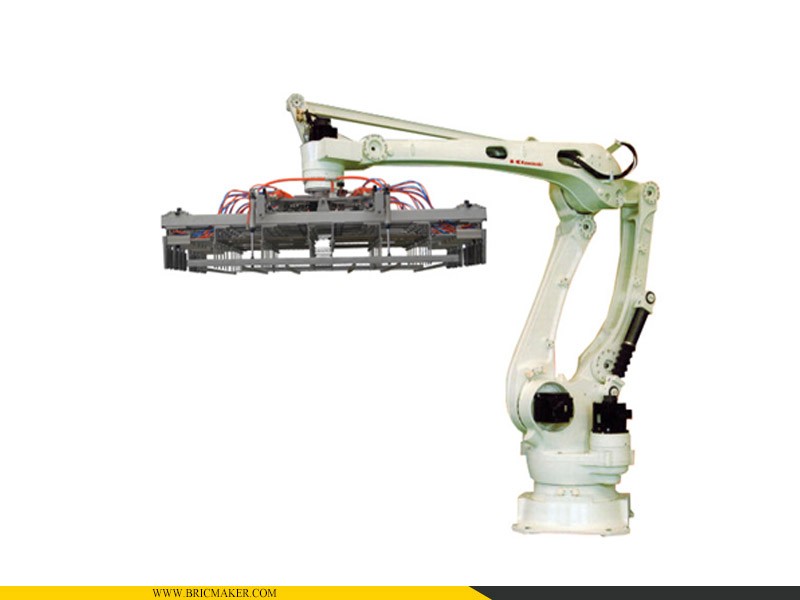

Detail images:

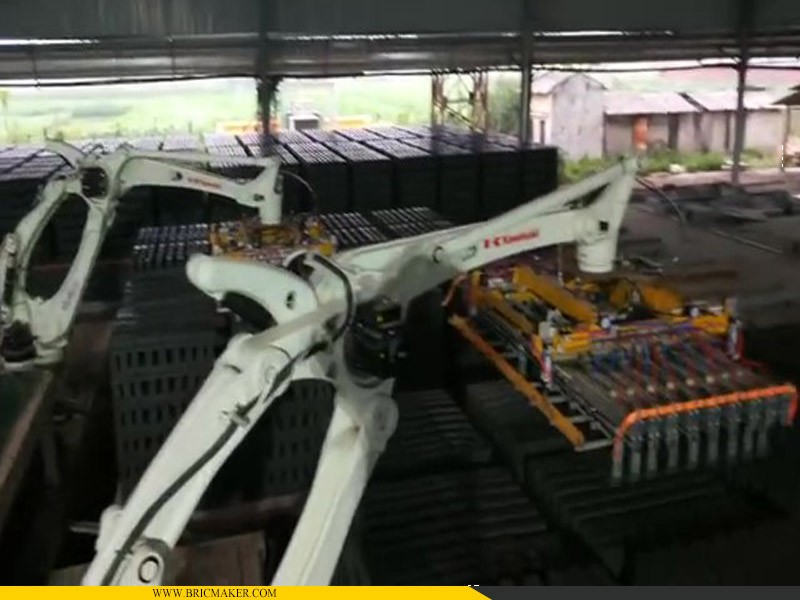

Working video:
