Sinter Red Brick Automatic Production Line Clay Coal


Brief introduction:

This production line is designed to make sintered red bricks from clay and coal. The raw materials need to be crushed and refinement to feed into the vacuum extruder.

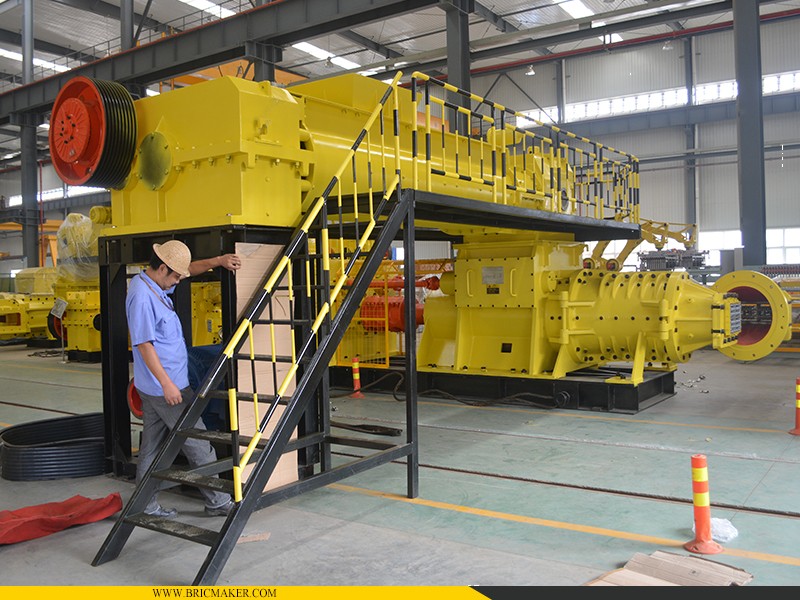

To meet the hourly capacity of 30,000 pcs, the vacuum extruder extrudes 6 bricks at a time and the slicer cuts 48 bricks at a time. The automatic robot collects 96 pcs wet bricks at a time.  And the green brick shaping and stack line works 8-10 hours a day continuously.

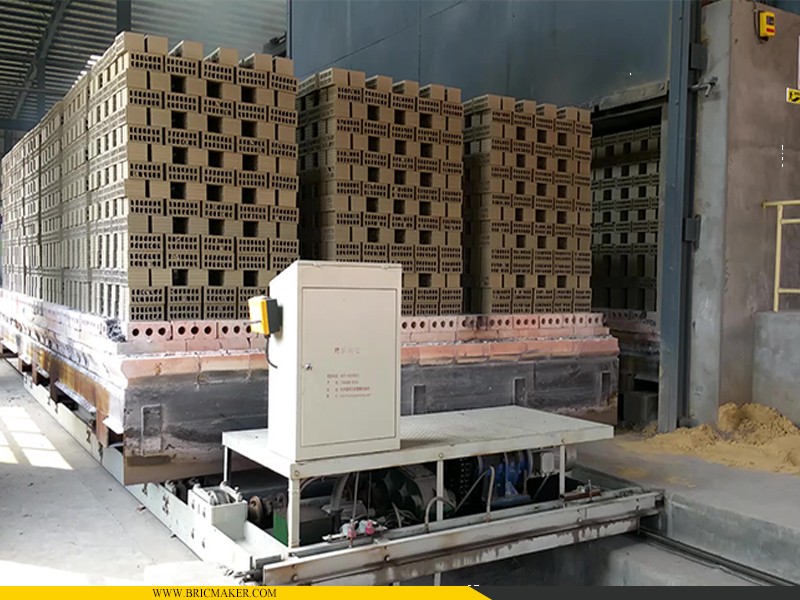

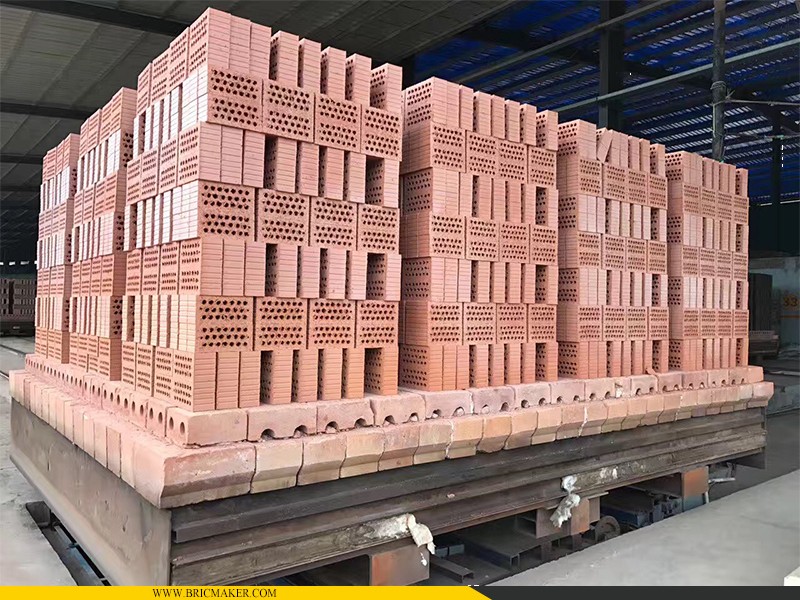

The baking technology adopts once stack and two stages baking. The kiln car is stacked with 7296 pcs wet bricks. The loaded kiln car enters the drying tunnel and firing tunnel to complete the sinter process. The tunnel kilns width are 3.6m. The daily output of the tunnel kiln is 29 cars sintered red bricks, which is 210,000 pcs red bricks.

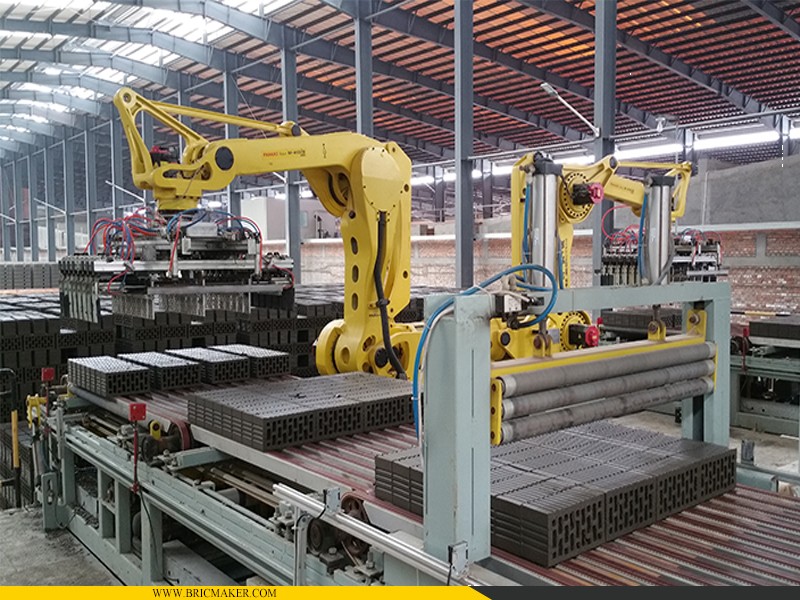

We also offer automatic packing system for red bricks. The heaps of bricks are lifted onto the brick splitting platform with a mobile crane and the bricks are separated layer by layer by mechanical devices. Each brick layer is rearranged by robots and stacked on pallets. After palletizing, the stacks of bricks are transported for packaging in horizontal and vertical packaging units. After packing, the packed bricks are transported in stacks to the storage location using forklifts. When the bricks are sold and loaded, the entire stack is then transported using vehicle transport forklifts.


Main technical parameters:

Production line name

Sinter Red Brick Automatic Production Line

Raw materials

Coal (small lump), clay (mixed with stone)

Wet brick size

84x84x194mm

Extrusion line output

30,000 pcs/hour

Kilns

One drying kiln, one firing kiln

Kiln width

3.6m

Kiln output

210,000 pcs/24 hours


Detail production progress:
