  • Brick Making Materials Excavator Hydraulic Multi-Bucket
  • Brick Making Materials Excavator Hydraulic Multi-Bucket
Brick Making Materials Excavator Hydraulic Multi-Bucket Brick Making Materials Excavator Hydraulic Multi-Bucket

Brick Making Materials Excavator Hydraulic Multi-Bucket

Brick Making Materials Excavator Hydraulic Multi-Bucket


1. Brief introduction:

The multi bucket excavator uses multiple hoppers to continuously collect the aged soil material and drives the hopper via a chain to smoothly transport the materials onto the conveyor belt for the next brick making process.

Depending on the design, multi bucket excavators are divided into hydraulic bucket excavators with side deck, bridge type multi bucket excavator and half-bridge multi bucket excavator.

The side shovel hydraulic excavator is suitable for brick making materials such as waste rock, slate and fly ash. The advantages are low investment costs, strong continuous operation capability, high production efficiency and low specific energy consumption.


2. Main technical parameters:

Capacity: m³/h

45-65

Power:  KW

19.4

Running speed: m/min

2.8-3

Arm’s elevation/depression angle °

25-40

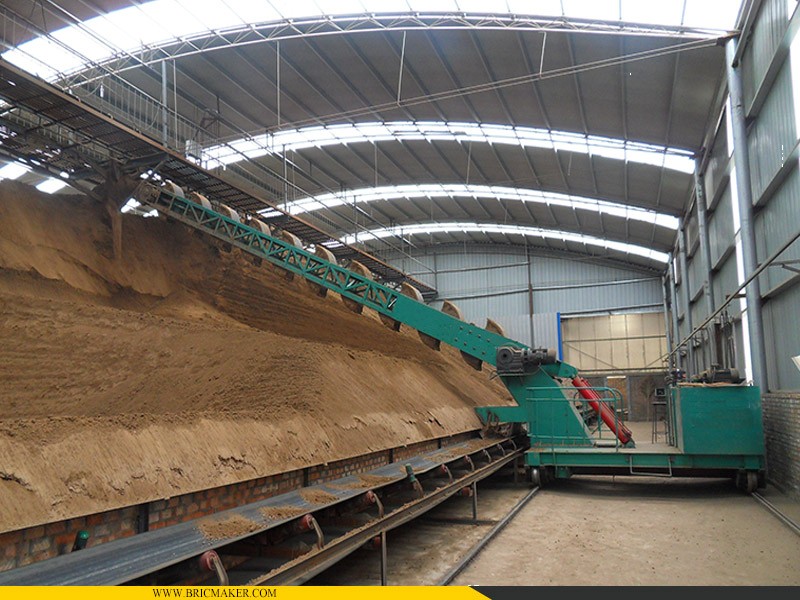

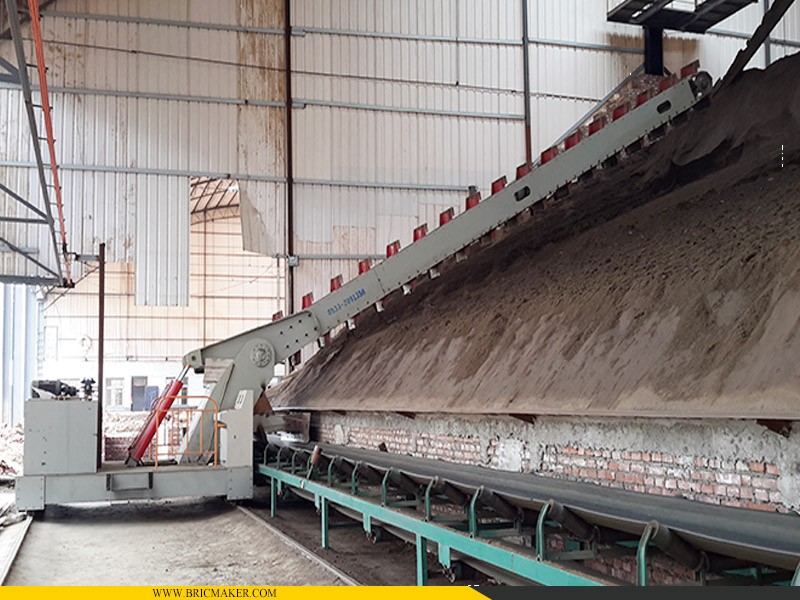

3. Detail images:
